Smoke Alarms Photoelectric Smoke Alarm FireTek Surface mount, 240V, mains-powered, Rechargeable 10-year lithium battery backup

Home ProductsSafetyFiretekPhotoelectric Smoke Alarm FireTek

Smoke Alarms Photoelectric Smoke Alarm FireTek Surface mount, 240V, mains-powered, Rechargeable 10-year lithium battery backup

Item Number: 755RLPSMA4

Smoke alarm for residential applications using photoelectric technology. Clipsal smoke alarms detects hazardous smoke and fire and provides warning to occupants in a home. The device can be interconnected with other 755 series smoke alarms. FireTek range. Mains power source 240V a.c. 50Hz, secondary power source is a rechargeable lithium battery with a 10-year lifetime. Note: Requires installation by an appropriately licenced electrician.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Fire Tek

Product brand

Clipsal

Product or component type

smoke detector

Device application

early detection of smouldering fires and open fires

Sustainable offer status

Green Premium product

Physical

Type of packing

carton

Supply

mains

Function available

local alarm| hush function| self-test of smoke detection

Control type

button (test/hush function)

Operating distance

50 m line of sight|140 m in free field

Local signalling

visual: 1 LED (red) for warning and low battery|visual: 1 LED (green) for ON status|sound: signal|sound: alarm

Connections - terminals

screw terminal (line) - 2 x 1.5 mm²|screw terminal (neutral) - 2 x 1.5 mm²|screw terminal (earth loop) - 2 x 1.5 mm²|screw terminal (interconnect) - 2 x 1.5 mm²

Type of installation

indoor

Device mounting

surface

Mounting support

ceiling|wall-mount

Fixing mode

by screws

Height

47 mm

Ip degree of protection

IP20

Ambient air temperature for operation

0...45 °C

Ambient air temperature for storage

-20...60 °C

Relative humidity

5...95 %

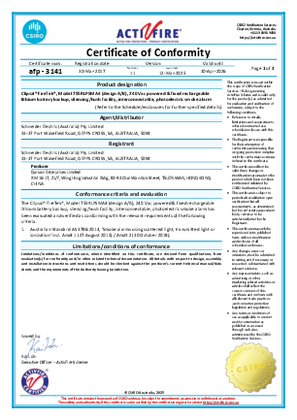

Product certifications

RCM|SAI|Activfire

Standards

ISO 8201|AS 3786:2014|AS/NZS 60950.1|AS/NZS 60065

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP1907002EN

Circularity profile

ENVEOLI1907002EN

Material

Material

thermoplastic

Others

Package 1 bare product quantity

1

Electronic sensor type

photo-electric sensor

[us] rated supply voltage

220...240 V AC 50 Hz

Output voltage limits

interconnection: 6.5...20 V

Type of alarms

low battery at 6.9...7.5 V

Detection type

heat

Number of devices

40 for wired alarm

Response time

< 30 s

Noise level

85 dB at 3 m, minimum

Time delay range

10 min (hush)|10 h (do not disturb)

Diameter

140 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.3 cm

Package 1 width

14.7 cm

Package 1 length

14.7 cm

Package 1 weight

296.0 g
Show all specifications

Frequently Asked Questions

hide show

What causes the smoke alarm to continuously beep ?

The dust inside the smoke alarms can cause a continuous beep.
Please follow the regular maintenance check to avoid this.

Vacuum the smoke alarms using a soft brush attachment-
Keeping your smoke alarm free of dust particles, dirt, kitchen grease or cobwebs will help you reduce false alarms and ensure any smoke can easily reach the internal sensing chamber.

Clean and wipe down around unit-
Clean around the smoke alarm unit and remove any insects or other contamination which may have occurred. Spray bug repellent on a cloth and wipe the ceiling around the smoke alarm to act as a future bug deterrent. Clean every 3-6 months to mitigate insect ingress.

ALWAYS TEST THE SMOKE ALARM AFTER CLEANING.

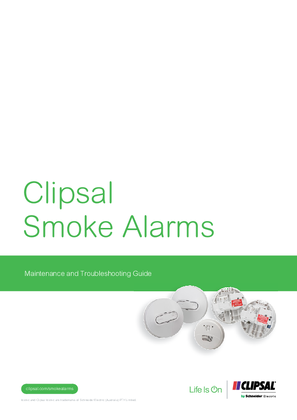

Attached is the Clipsal smoke alarm troubleshooting guide for more info.
