Motion Sensor, Motion Infrared Sensor, 10A, 3 Wire, Flush Mount

Home ProductsSafetyClipsal - Motion SensorMotion Infrared Sensor

Motion Sensor, Motion Infrared Sensor, 10A, 3 Wire, Flush Mount White Electric

Item Number: 753R-WE

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Infrascan

Product brand

Clipsal

Product or component type

movement sensor

Device application

lighting

Surface finish

brilliant

Sustainable offer status

Green Premium product

Physical

Sensor type

PIR

[ue] rated operational voltage

200...265 V AC

Inrush current

10 A

Protection type

creep zone protection

Function available

automatic with manual override

Movement detection area

14 m

Device mounting

flush

Mounting support

ceiling

Mounting height

2.4 m

Ip degree of protection

IP20

Ambient air temperature for operation

0...50 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP110502EN

Circularity profile

ENVEOLI110502EN

Material

Material

plastic

Others

Package 1 bare product quantity

1

Product specific application

staircase monitoring

Network frequency

50 Hz

Power range

<= 2300 W

Horizontal detection angle

0...360 °

Time delay range

0...5 s (switch-on)

Duty cycle

20 min

Detection face

lateral: 7 m|frontal: 7 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

16.5 cm

Package 1 width

8.5 cm

Package 1 length

12.5 cm

Package 1 weight

204 g

Unit type of package 2

CAR

Number of units in package 2

10

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

3354.8 g

Unit type of package 3

PAL

Number of units in package 3

160

Package 3 height

120 cm

Package 3 width

60 cm

Package 3 length

80 cm

Package 3 weight

63676.8 g
Show all specifications

Frequently Asked Questions

hide show

Can 753 series motion sensors be connected in parallel to a common load?

If parallel connection of multiple motion sensors to control a common load is required, use Cat. No. 753R (3 wire infrascan). Please note more than one 753 (2 wire infrascan) CANNOT be connected in parallel to a common load.

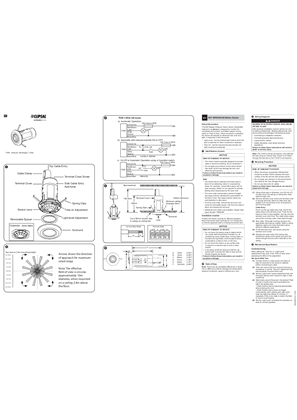

For further information please read the attached installation instruction .
