Specifications
Design
Range
Actassi

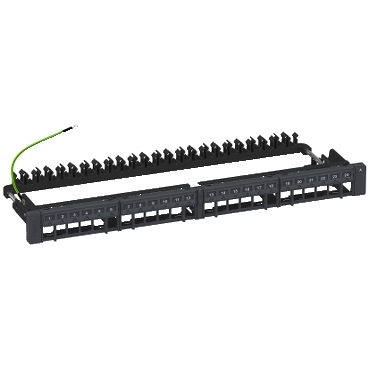

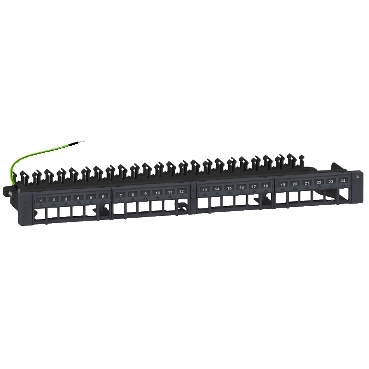

Product or component type
copper patch panel
Product compatibility
S-110 keystone STP adaptor plate
Product destination
data center
Sustainable offer status
Green Premium product
Physical
Device presentation
empty
Provided equipment
adaptor plate not included|connector not included
Connector type
RJ45 STP
Fixing mode
on panel horizontal position
Function available
real time patching detection after firmeware upgrade
Range compatibility
Actassi Actassi FLEX adaptor plate|Actassi Actassi iFLEX upgrade kit|Actassi Actassi iFLEX copper front cover
Mounting support
19" rack
Type of footprint
S-110 keystone
Type of installation
indoor
Length
482.6 mm
Width
114.5 mm
Height
44.45 mm
Ambient air temperature for operation
0...55 °C
Ambient air temperature for storage
-20...65 °C
Product certifications
UL
Reach free of svhc
Yes
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP090710EN
Material
Material
plastic RAL 7016|steel RAL 9005
Others
Product name
Actassi FLEX
Number of port
24 port
Communication port support
copper cable
Number of rack unit
1U
Targeted region
Asia Pacific.
Documents & downloads
hide showFilter items
-
All
-

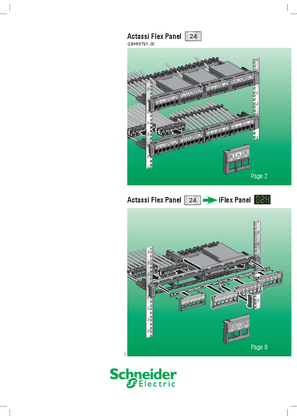

Installation Instruction
-
