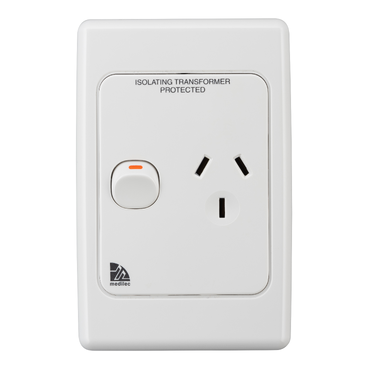

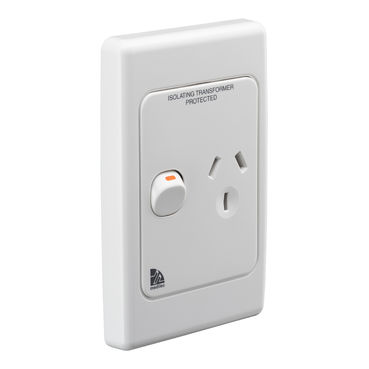

Medilec Switched Socket Outlet Vertical Mount, Double Pole, Isolate label

Red 1 PCE 1
White Electric 1 PCE 1

Home ProductsMedical Electrical EquipmentMedilecSwitched Socket Outlet

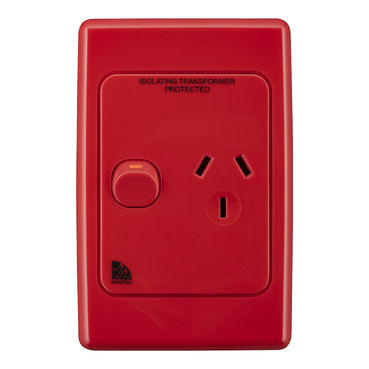

Medilec Switched Socket Outlet Red

Item Number: ML2015VD-RD

Red 1 PCE 1
White Electric 1 PCE 1

Datasheet

For ML2015VD-RD

Barcode

Qty	UoM	EAN	Colour
1		9311554672676	Red
5		9311554672683	Red
50		19311554672673	Red

Barcode

Qty	UoM	EAN	Colour
1		9311554533755	WE
5		9311554672706	WE
50		19311554533752	WE
1		9311554672676	RD
5		9311554672683	RD
50		19311554672673	RD

Specifications

Design

Range of product

ML2000 Moulded Series
Medilec

Product or component type

switched socket

Product brand

Clipsal

Physical

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Actuator

switch
rocker

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

vertical

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Length

116 mm

Width

76 mm

Standards

AS/NZS 3112

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

plastic

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

5

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

35 cm

Package 1 width

115 cm

Package 1 length

75 cm

Package 1 weight

213 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

115 cm

Package 2 width

85 cm

Package 2 length

155 cm

Package 2 weight

1.065 kg

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Minimum percentage of recycled plastic content

0

Show all specifications
