Medilec, Switched Socket Outlet, Horizontal, Power Indicator and RCD Label

Home ProductsMedical Electrical EquipmentMedilecSwitched Socket Outlet

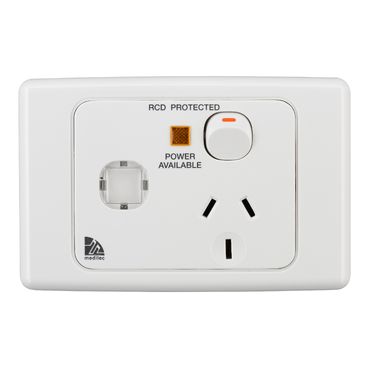

Medilec, Switched Socket Outlet, Horizontal, Power Indicator and RCD Label White Electric

Item Number: ML2015I-WE

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

ML2000 Moulded Series|Medilec

Product or component type

switched socket

Product brand

Clipsal

Physical

Control type

ON/OFF button

Number of gangs

1 gang

Pin number

3

Number of power socket outlets

1

Actuator

rocker|switch

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Length

116 mm

Width

76 mm

Standards

AS/NZS 3112

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

plastic

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.0 cm

Package 1 width

7.8 cm

Package 1 length

12.0 cm

Package 1 weight

94.0 g
Show all specifications
