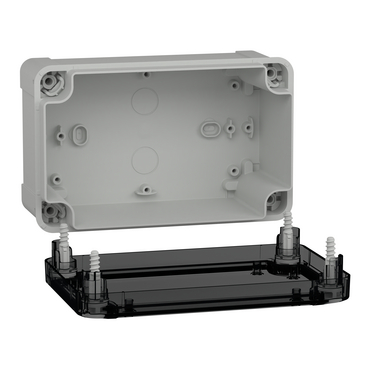

Thalassa PC Box Transparent Cover
Item Number: NSYTBP19128T
Thalassa TBP industrial PC box with transparent PC cover H20. Int is 175 x 105 x 80 mm. Ext is 192 x 121 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Specifications
Design
Range
Device application
Product or component type
Colour
- grey (RAL 7035)
- transparent
Warranty
Physical
Height
Width
Depth
Quantity per set
Standards
- IEC 62208
- UL 508 A
Product certifications
- TÜV
- UL
Electrical insulation class
Net weight
Ip degree of protection
Ik degree of protection
Ambient air temperature for storage
Ambient air temperature for operation
Reach free of svhc
Eu rohs directive
Toxic heavy metal free
Mercury free
China rohs regulation
Rohs exemption information
Environmental disclosure
Circularity profile
Material
Device composition
- 1 body
- 1 cover
- 4 cover screw
Material
