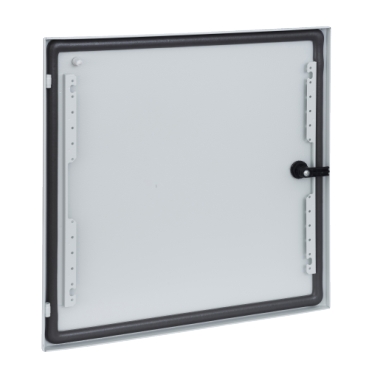

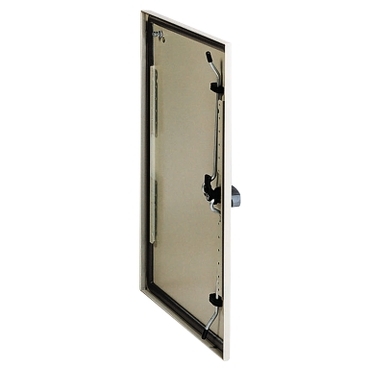

Thalassa Door
Item Number: NSYDS3D46
Plain door for PanelSeT S3D The product is to be mounted on front of the enclosure The nominal width is 600mm The nominal height is 400mm The door is made of sheet steel (RAL 7035) and has a degree of IP protection IP66 Hinges left or right (120 ° opening angle) Maximum load is 50 kg/m² The door has 1 locks with 3mm double bar
Datasheet
For NSYDS3D46
Close
Specifications
Design
Range
PanelSeT
Product or component type
door
Device application
multi-purpose
Colour
grey (RAL 7035)
Surface finish
textured epoxy polyester
Warranty
18 months
Physical
Range compatibility
PanelSeT PanelSeT S3D
Quantity per set
set of 1
Height
nominal: 400 mm
Width
nominal: 600 mm
Net weight
3.524 kg
Reach regulation
Free of Substances of Very High Concern above the threshold
Reach free of svhc
Yes
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP100104EN
Circularity profile
N/A
Material
Device composition
- 1 door
- locking system
Material
door: sheet steel
