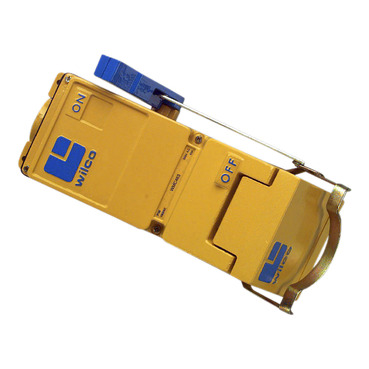

Metal Clad, Switched Socket Outlet Combination, 1 Gang, 63A, 500V, 4 Round Socket
Item Number: WMC463
Specifications
Design
Range of product
Wilco|Series A
Product brand
Clipsal
Device application
power supply
Sustainable offer status
Green Premium product
Physical
Number of poles
4
Number of power socket outlets
1 protective cover
[in] rated current
63 A
[ue] rated operational voltage
500 V AC
Device mounting
surface
Depth
185 mm
Width
155 mm
Height
370 mm
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP1403001EN
Circularity profile
N/A
Material
Material
cast aluminium: housing
Others
Package 1 bare product quantity
1
Number of modules
3
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
18.5 cm
Package 1 width
15.5 cm
Package 1 length
37.0 cm
Package 1 weight
5.38 kg
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Installation Instruction
-

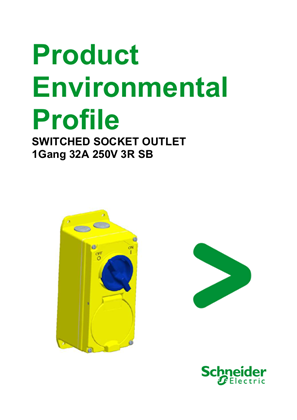

Environmental Disclosure
-
Specification Guide
-

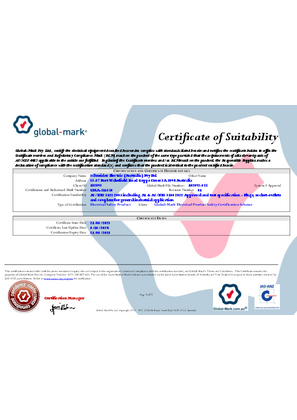

Certificates (MSDS)
