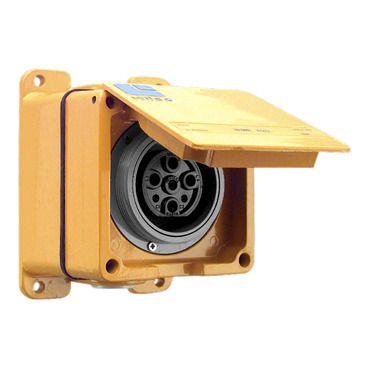

Metal Clad, Socket Outlet, 1 Gang 20A 500V, 4 Round Sockets, IP66, Cast Aluminium Material
Item Number: WMB420
Specifications
Design
Range of product
Wilco
Product brand
Clipsal
Physical
Device mounting
surface
Mounting mode
external mounting
[in] rated current
63 A
[ue] rated operational voltage
500 V 50/60 Hz conforming to EN 60309-2
Socket number
1
Depth
110 mm
Width
115 mm
Height
150 mm
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs exemption information
Yes
Material
Material
cast aluminium
Others
Package 1 bare product quantity
1
Voltage colour
black
Duration
7 h
Socket-outlet type
A3
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
11.0 cm
Package 1 width
11.5 cm
Package 1 length
15.0 cm
Package 1 weight
1.66 kg
