Datasheet

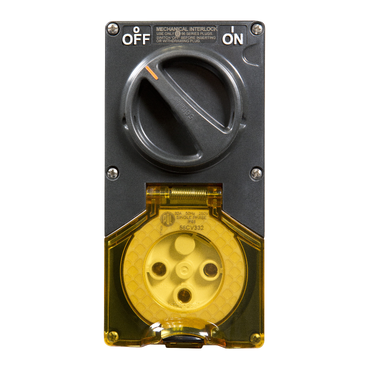

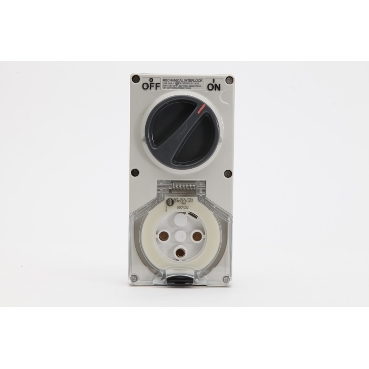

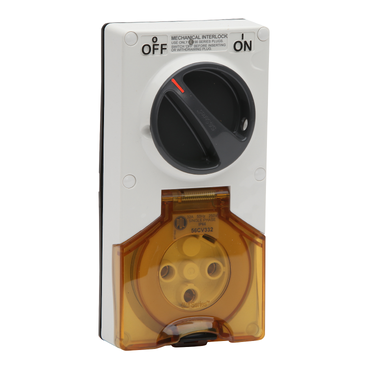

For PDL56CV332LECG
Product Dimensions
Width95.0 mm
Height190.0 mm
Depth60.0 mm
Close
Specifications
Design
Range
56 Series
Product or component type
switch and socket-outlet
Colour
- body: grey (RAL 7035)
- rotary handle: dark grey
Market segment
- small commercial
- industry
- utility
Physical
Control type
rotary knob
Mounting mode
surface mounted
[in] rated current
32 A
Pin number
3 pins
[ue] rated operational voltage
250 V
Protection type
without protection
Connections - terminals
screw terminals
Net weight
0.515 kg
Height
190.0 mm
Width
95.0 mm
Depth
60.0 mm
Standards
- AS/NZS 3123
- AS/NZS 3133
Ambient air temperature for operation
-25...75 °C
Ambient air temperature for storage
-25...75 °C
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
polycarbonate
Contacts material
pins: brass
