Datasheet

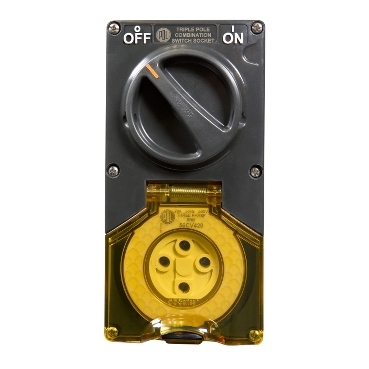

For PDL56CV420LECG
Product Dimensions
Width95.0 mm
Height190.0 mm
Depth60.0 mm
Close
Specifications
Design
Range
56 Series
Product or component type
switch and socket-outlet
Colour
- rotary handle: dark grey
- body: grey (RAL 7035)
Market segment
- small commercial
- industry
- utility
Physical
Control type
rotary knob
Mounting mode
surface mounted
[in] rated current
20 A
Pin number
4 pins
[ue] rated operational voltage
500 V
Protection type
without protection

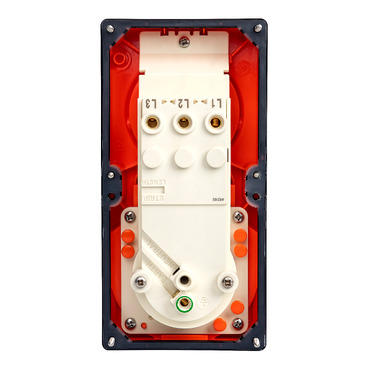

Connections - terminals
screw terminals
Net weight
0.477 kg
Height
190.0 mm
Width
95.0 mm
Depth
60.0 mm
Standards
- AS/NZS 3133
- AS/NZS 3123
Ambient air temperature for operation
-25...75 °C
Ambient air temperature for storage
-25...75 °C
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
polycarbonate
Contacts material
pins: brass
