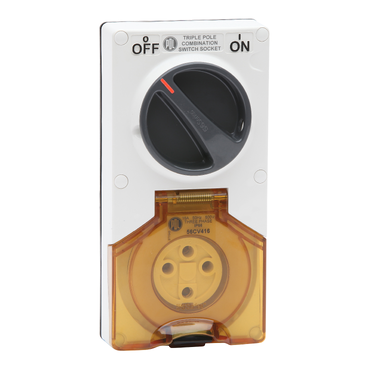

56 Series Switched Socket 16A 500V 4-Round Pin 2-Gang 3-Pole IP66 | Grey
Item Number: PDL56CV416LEGY
Datasheet
Close
Specifications
Design
Range of product
56 Series
Product or component type
switched socket
Colour tint
grey
Surface finish
gloss
Physical
Control type
rotary
Installation direction
vertical
Rated current
16 AX
[ue] rated operational voltage
500 V
Number of gangs
2 gangs
Pin number
4
Number of poles
3
Ip degree of protection
IP66
Fixing center
84 x 180 mm
Device mounting
surface
Width
95 mm
Height
191 mm
Quantity per set
set of 2
Type of packing
carton
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
plastic
Device composition
round pin
Others
Package 1 bare product quantity
1
Dimension type
cover only
Network frequency
50 Hz
Motor m-rating as3133
M120
Network number of phases
3 phases
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.5 cm
Package 1 width
9.5 cm
Package 1 length
19 cm
Package 1 weight
477 g
