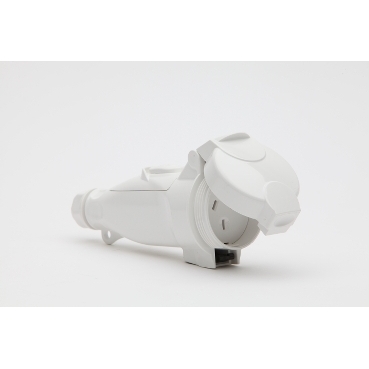

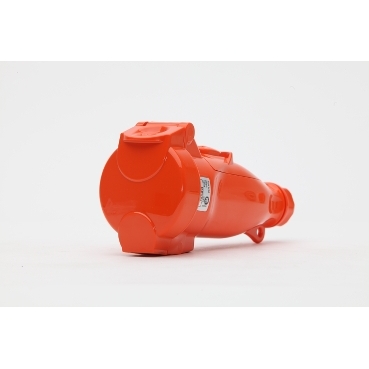

56 Series Switched Pendant Socket 250V 10A 3-Flat Pin IP66, Chemical-Resistant Orange

Home ProductsIndustrial56 SeriesSwitched Pendant Socket

56 Series Switched Pendant Socket 250V 10A 3-Flat Pin IP66 | Resistant White Electric

Item Number: PDL56SPO310RW

Datasheet

PDF datasheet

For PDL56SPO310RW

Barcode

Qty UoM EAN Colour
1 9416175232657 Resistant White Electric
4 9416175261770 Resistant White Electric
12 19416175232654 Resistant White Electric

Specifications

Design

Range of product

56 Seriesâ„¢

Product or component type

socket-outlet

Colour tint

orange

Surface finish

gloss

Physical

Rated current

10 A

[ue] rated operational voltage

250 V

Pin number

3

Mounting mode

pendant

Ip degree of protection

IP66

Ambient air temperature for operation

-40...55 °C

Quantity per set

set of 4

Type of packing

carton

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

PBT (polybutylene terephthalate)

Device composition

flat pin
Show all specifications
