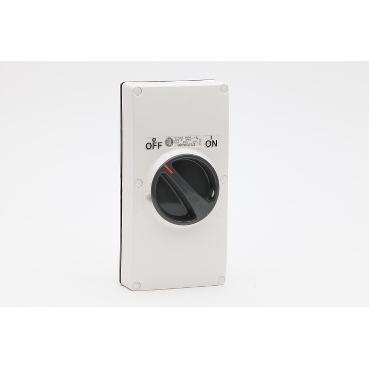

Datasheet

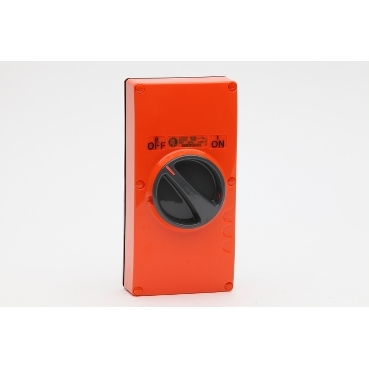

For PDL56SW3632LECG
Product Dimensions
Width95.0 mm
Height190.0 mm
Depth69.0 mm
Close
Specifications
Design
Range
56 Series
Product or component type
switch
Colour
- body: grey
- rotary handle: dark grey
Market segment
- utility
- small commercial
- industry
Physical
Control type
rotary knob
[ue] rated operational voltage
500 V AC 50 Hz
[ie] rated operational current
- 63 A (AC-21A) at 500 V AC
- 45 A (AC-23A) at 500 V AC
- (AC-21A) at 500 V AC
- (AC-23A) at 500 V AC
Connections - terminals
screw terminals cable(s) 6-35 mm² rigid or stranded
Height
190.0 mm
Width
95.0 mm
Depth
69.0 mm
Net weight
0.396 kg
Standards
AS/NZS 3133
Ip degree of protection
IP66 conforming to AS 60529
Ambient air temperature for operation
-25...75 °C
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs exemption information
Yes
