56 Series Switch 20A 240V 1-Pole IP66

Home ProductsIndustrial56 SeriesSwitch

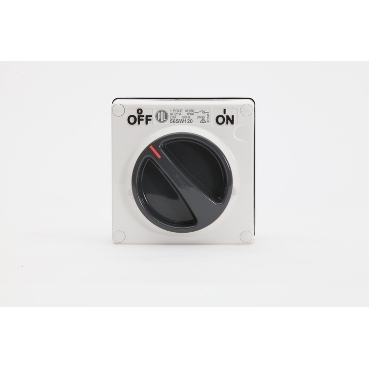

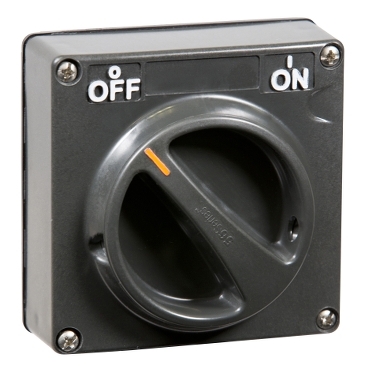

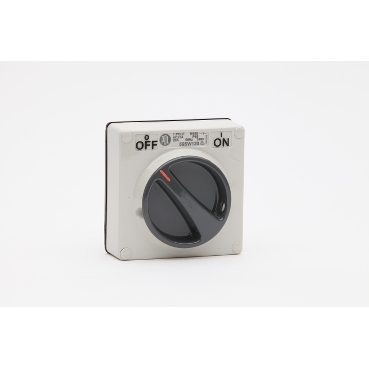

56 Series Switch Chemical Grey

Item Number: PDL56SW120LECG

Where To Buy

Datasheet

PDF datasheet

For PDL56SW120LECG

Download

Product Dimensions

Width icon

Width95.0 mm

Height icon

Height95.0 mm

Depth icon

Depth62.0 mm

See full specifications

Barcode

Qty UoM EAN Colour
1 9416175247101 Chemical Grey
4 9416175248009 Chemical Grey
8 19416175247108 Chemical Grey
See all

Specifications

Design

Range

56 Series

Product or component type

switch

Colour

  • rotary handle: dark grey
  • body: grey

Market segment

  • utility
  • small commercial
  • industry

Physical

Control type

rotary knob

[ue] rated operational voltage

250 V AC 50 Hz

[ie] rated operational current

20 A (AC-23A) at 250 V AC

Connections - terminals

screw terminals cable(s) 1-16 mm² rigid or stranded

Height

95.0 mm

Width

95.0 mm

Depth

62.0 mm

Net weight

0.217 kg

Standards

AS/NZS 3133

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information
