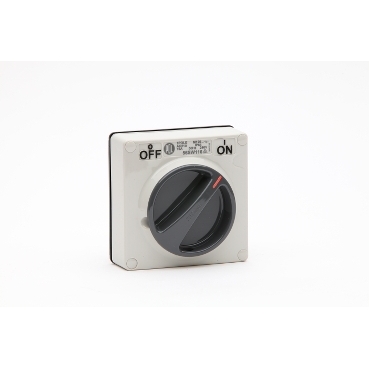

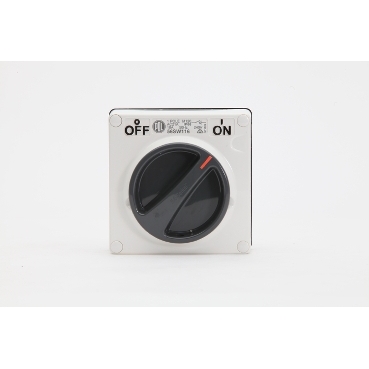

56 Series Switch 16A 250V 1-Pole IP66, Chemical-Resistant Grey

Home ProductsIndustrial56 SeriesSwitch

56 Series Switch 16A 250V 1-Pole IP66, Chemical-Resistant Grey | Chemical Grey

Item Number: PDL56SW116LECG

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width95.0 mm

Height icon

Height95.0 mm

Depth icon

Depth62.0 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

56 Series

Product or component type

switch

Colour

rotary handle: dark grey|body: grey

Market segment

utility|small commercial|industry

Physical

Control type

rotary knob

[ue] rated operational voltage

250 V AC 50 Hz

[ie] rated operational current

15 A (AC-23A) at 250 V AC

Connections - terminals

screw terminals cable(s) 1-16 mm² rigid or stranded

Height

95.0 mm

Width

95.0 mm

Depth

62.0 mm

Net weight

0.222 kg

Standards

AS/NZS 3133

Ip degree of protection

IP66 conforming to AS 60529

Ambient air temperature for operation

-25...75 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Others

Package 1 bare product quantity

1

Device short name

PDL56SW116LECG

Poles description

1P

Rotary handle padlocking

2 padlocks 8-8 mm

[ithe] conventional enclosed thermal current

16 A

Making capacity

200 A at 250 V AC-23A

[icm] rated short-circuit making capacity

1 kA at 250 V AC-21A|1 kA at 250 V AC-23A| at 250 V AC-21A| at 250 V AC-23A

[icw] rated short-time withstand current

1.5 kA at 250 V duration: 1 s

Breaking capacity

0.2 kA at 250 V (AC-23A)|0.2 kA at 250 V (AC-21A)

Suitability for isolation

yes

Targeted country

New Zealand|Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6 cm

Package 1 width

9.5 cm

Package 1 length

9.5 cm

Package 1 weight

217 g
