Resistant White Electric 1 PCE 1

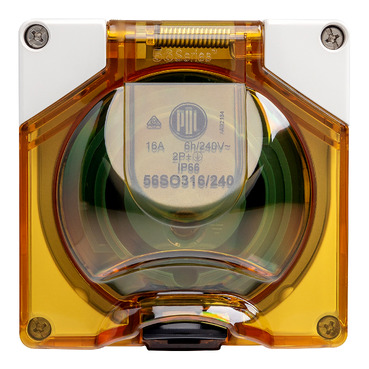

56 Series Socket Resistant White Electric

Item Number: PDL56SO316/240LERW

Resistant White Electric 1 PCE 1

Where To Buy

Datasheet

For PDL56SO316/240LERW

Download

Product Dimensions

Width95 mm

Height191 mm

Depth35 mm

See full specifications

Barcode

Qty	EAN	Colour
1	9416175230110	Resistant White Electric
4	9416175249549	Resistant White Electric
8	19416175230117	Resistant White Electric

Barcode

Qty	EAN	Colour
1	9416175230110	RW
4	9416175249549	RW
8	19416175230117	RW

Specifications

Design

Range of product

56 Series™

Product brand

PDL

Product or component type

socket-outlet

Colour tint

white

Surface finish

gloss

Physical

Quantity per set

set of 2

Type of packing

carton

Installation direction

vertical

Width

95 mm

Height

191 mm

Depth

35 mm

Rated current

16 A

[ue] rated operational voltage

250 V

Number of gangs

2 gangs

Pin number

Mounting mode

surface mounted

Fixing center

84 x 84 mm

Ip degree of protection

IP66

Ambient air temperature for operation

-40...55 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Material

Material

PC + PET

Device composition

round pin

Others

Package 1 bare product quantity

Package 2 bare product quantity

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Network frequency

50 Hz

Network number of phases

1 phase

Cable cross section

0.75...10 mm²

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

3.5 cm

Package 1 width

9.5 cm

Package 1 length

19.1 cm

Package 1 weight

230.484 g

Unit type of package 2

BB1

Number of units in package 2

Package 2 height

8.3 cm

Package 2 width

19.2 cm

Package 2 length

19.2 cm

Package 2 weight

1.021 kg

Take-back

Product contributes to saved and avoided emissions

Recycled metal content at cr level

Removable battery

N/A

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

All
Product Brochures
Quick Start Guide
Declaration of Conformity
Certificates (MSDS)

ZIP

56 Series Brochure

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.9 MB

ZIP

56 Series sealing instructions using enclosures to ensure full IP66 installation

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 360.3 KB

ZIP

56 Series Materials Declaration of Conformity

VERSION

1.0

DATE

07 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 251.6 KB

ZIP

CS_GMA-510501-Rev00--56SOxxx series Size 2 round pins

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 7.5 MB

ZIP

56 Series Brochure

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.9 MB

ZIP

56 Series sealing instructions using enclosures to ensure full IP66 installation

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 360.3 KB

ZIP

56 Series Materials Declaration of Conformity

VERSION

1.0

DATE

07 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 251.6 KB

ZIP

CS_GMA-510501-Rev00--56SOxxx series Size 2 round pins

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 7.5 MB

Colour Resistant White Electric (RW)
