Datasheet
For PDL56P720
Close
Specifications
Design
Range
56 Series
Product or component type

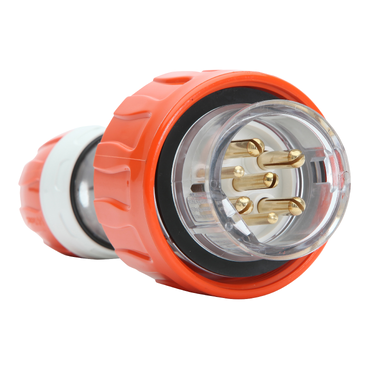

plug
Colour tint
orange
Surface finish
gloss
Physical
Rated current
20 A
[ue] rated operational voltage
500 V
Pin number
7
Ambient air temperature for operation
-40...55 °C
Quantity per set
set of 4
Type of packing
carton
Ip degree of protection
IP66
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP121020EN
Circularity profile
N/A
Material
Material
plastic
