Specifications
Design
Range
56 Series

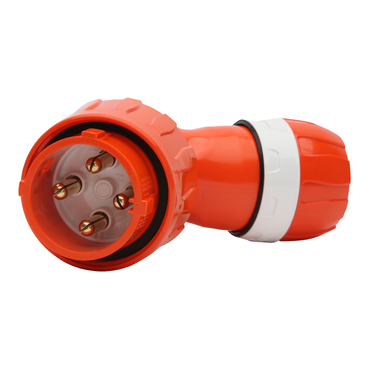

Product or component type
plug
Colour tint
orange
Surface finish
gloss
Sustainable offer status
Green Premium product
Physical
Rated current
40 A
[ue] rated operational voltage
500 V
Pin number
4
Ambient air temperature for operation
-40...55 °C
Quantity per set
set of 4
Type of packing
carton
Ip degree of protection
IP66
Eu rohs directive
Compliant with Exemptions
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP121020EN
Circularity profile
N/A
Material
Material
PBT (polybutylene terephthalate)
Others
Package 1 bare product quantity
1
Network frequency
50 Hz
Network number of phases
3 phases
Cable cross section
9...29 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
467.5 g
