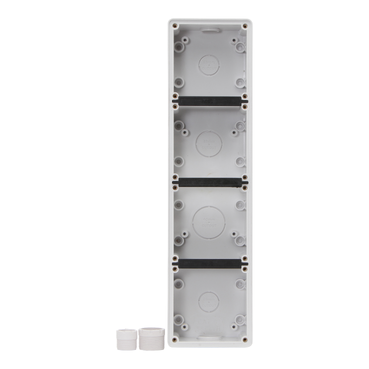

56 Series Enclosure Vertical/Horizontal 4-Gang 1x25mm 1x32mm IP66 | Grey
Item Number: PDL56E4VHGY
Datasheet
Close
Specifications
Design
Range
56 Series
Product brand
PDL
Product or component type
enclosure
Surface finish
gloss
Colour tint
grey
Physical
Mounting mode
surface mounted
Installation direction
horizontal|vertical
Number of gangs
4 X 1 gang
Length
102 mm
Width
102 mm
Depth
63 mm
Quantity per set
set of 1
Type of packing
plastic bag and carton
Ambient air temperature for operation
-40...55 °C
Ip degree of protection
IP66
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Circularity profile
N/A
Material
Material
PVC (polyvinyl chloride)
Others
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.3 cm
Package 1 width
10.2 cm
Package 1 length
39.1 cm
Package 1 weight
827.2 g
