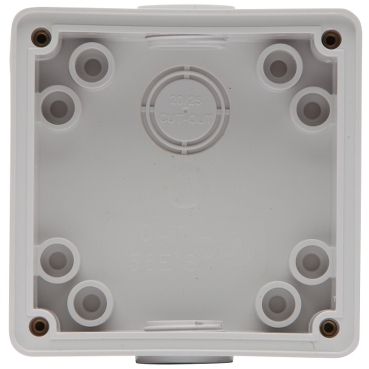

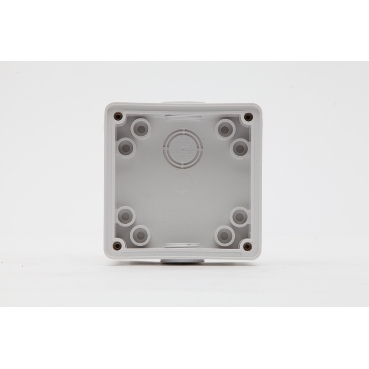

56 Series Enclosure Shallow 1-Gang 2x25mm IP66, Chemical-Resistant Grey | Chemical Grey
Item Number: PDL56E1SCG
Specifications
Design
Product or component type
enclosure
Market segment
small commercial|industry|utility
Sustainable offer status
Green Premium product
Physical
Device mounting
surface
Mounting mode
wall-mounted
Net weight
0.235 kg
Height
102.0 mm
Width
102.0 mm
Depth
40.0 mm
Standards
AS 3100
Ip degree of protection
IP66 conforming to AS 60529
Ambient air temperature for operation
-25...75 °C
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP1508013EN
Circularity profile
N/A
Material
Material
PVC (polyvinyl chloride): housing
Others
Package 1 bare product quantity
1
Product name
56 Series
Device short name
PDL56E1SCG
Base dimension
102 x 102 mm
Targeted country
New Zealand
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.3 cm
Package 1 width
10 cm
Package 1 length
10 cm
Package 1 weight
0.27 kg
