Specifications
Design

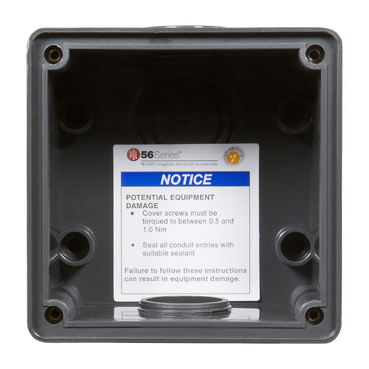

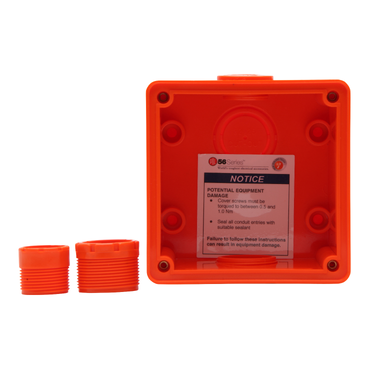

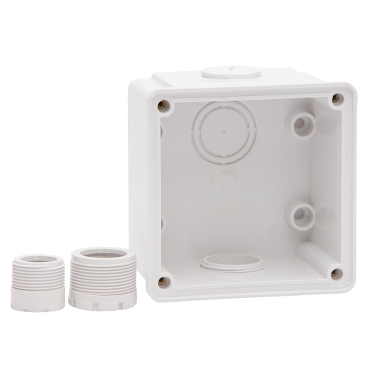

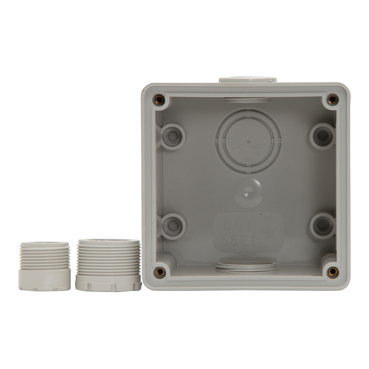

Product or component type
enclosure
Market segment
- small commercial
- industry
- utility
Physical
Device mounting
surface
Mounting mode
wall-mounted
Net weight
0.235 kg
Height
102.0 mm
Width
102.0 mm
Depth
63.0 mm
Standards
AS 3100
Ip degree of protection
IP66 conforming to AS 60529
Ambient air temperature for operation
-25...75 °C
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP1508013EN
Circularity profile
N/A
Material
Material
PVC (polyvinyl chloride): housing
