Specifications
Design
Range of product

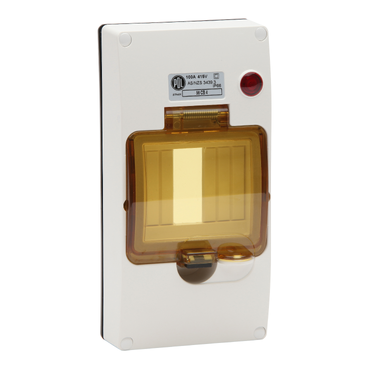

56 Series™
Product or component type
cover
Colour tint
grey
Surface finish
gloss
Physical
Installation direction
vertical
Width
95 mm
Height
198 mm
Depth
32 mm
Rated current
100 A
[ue] rated operational voltage
415 V
Number of gangs
2 gangs
Mounting mode
surface mounted
Ip degree of protection
IP66
Quantity per set
set of 4
Type of packing
carton
Reach regulation
Free of Substances of Very High Concern above the threshold
Reach free of svhc
Yes
Eu rohs directive
Compliant
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP130202EN
Circularity profile
N/A
Material
Material
PC (polycarbonate)
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Quick Start Guide
ZIP
56 Series Brochure
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 3.9 MB
ZIP
56 Series sealing instructions using enclosures to ensure full IP66 installation
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 360.3 KB
ZIP
56 Series installation instructions for din rail mounted covers MCB and RCDs
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 385.5 KB
