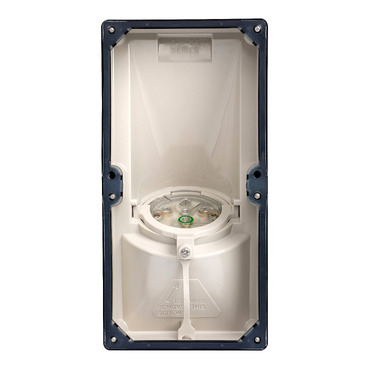

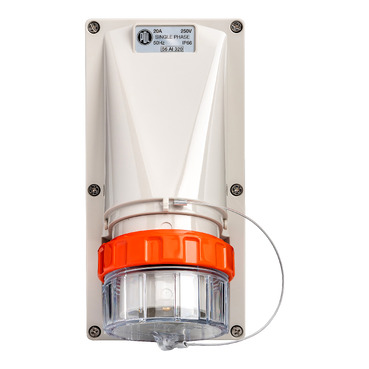

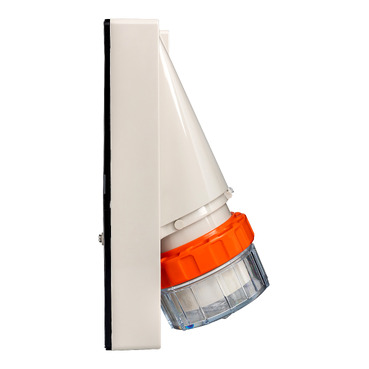

56 Series Appliance Inlet 20A 250V 1-Phase 3-Flat Pin IP66, Grey
Item Number: PDL56AI320LE
Datasheet
Close
Specifications
Design
Range of product
56 Series
Product or component type
appliance inlet
Colour tint
grey
Surface finish
gloss
Physical
Installation direction
vertical
Width
95 mm
Height
191 mm
Rated current
20 A
[ue] rated operational voltage
250 V
Pin number
3
Mounting mode
surface mounted
Fixing center
84 x 180 mm
Ip degree of protection
IP66
Ambient air temperature for operation
-40...55 °C
Quantity per set
set of 2
Type of packing
carton
Reach regulation
Reference contains Substances of Very High Concern above the threshold
Eu rohs directive
Compliant with Exemptions
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PC (polycarbonate)
Device composition
round pin
Others
Package 1 bare product quantity
1
Network frequency
50 Hz
Network number of phases
1 phase
Cable cross section
1...6 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
10 cm
Package 1 width
9.5 cm
Package 1 length
19 cm
Package 1 weight
380 g
