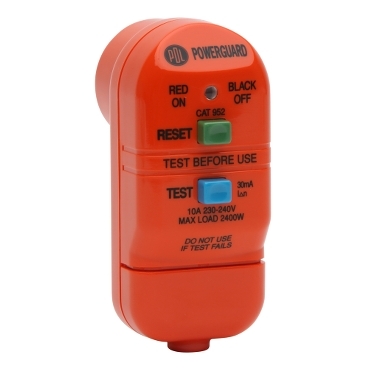

Powerguard Series, Rewirable Portable RCD Adapter Plug, 10A and 30mA Tripping Orange
Item Number: PDL952OR
Datasheet
Close
Specifications
Design
Product or component type
residual current device
Colour tint
white
Surface finish
gloss
Sustainable offer status
Green Premium product
Physical
Rated current
10 A
[ue] rated operational voltage
230/240 V
Ip degree of protection
IP3x
Ambient air temperature for operation
-10...40 °C
Quantity per set
set of 1
Type of packing
blister
Reach regulation
Free of Substances of Very High Concern above the threshold
Reach free of svhc
Yes
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP060307EN
Circularity profile
N/A
Material
Material
PC (polycarbonate)
Others
Commercial status history
SESA65410 | Fri Apr 05 01:46:00 EDT 2024 | From Import Local | From 18 to 19
Package 1 bare product quantity
1
Network frequency
50 Hz
Nominal power
2.4 kW
Network number of phases
1 phase
Cable cross section
0.75...1.5 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.5 cm
Package 1 width
15.5 cm
Package 1 length
23.0 cm
Package 1 weight
0.158 kg
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Environmental Disclosure
-

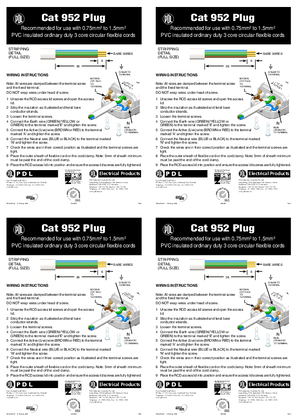

Quick Start Guide
