Datasheet

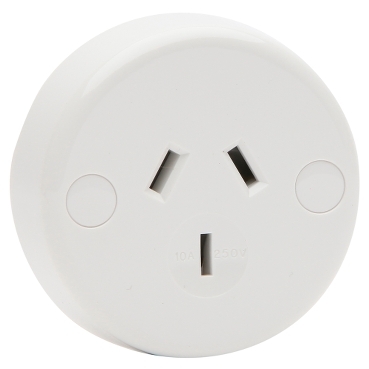

For PDL570RWH
Close
Specifications
Design
Range of product
PDL General Accessories
Product or component type
socket-outlet
Colour tint
white
Surface finish
glossy
Physical
Quantity per set
set of 10
Type of packing
carton
[in] rated current
10 A
[ue] rated operational voltage
250 V 50 Hz
Socket number
3
Installation direction
vertical
Mounting support
panel
Depth
17.5 mm
Fixing center
34 mm
Ambient air temperature for operation
-10...40 °C
Reach free of svhc
Yes
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP110719EN
Circularity profile
N/A
Material
Material
PC (polycarbonate)
