PDL General Accessories Mounting Block Shallow 25mm

Home ProductsElectrical AccessoriesPDL AccessoriesMounting Block

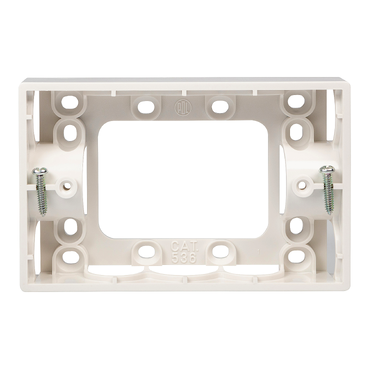

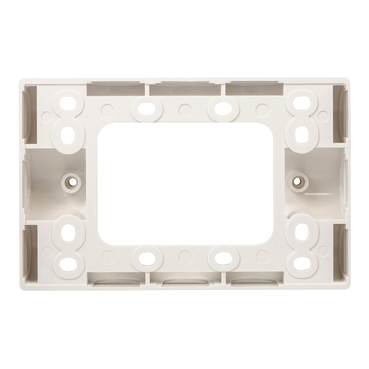

PDL General Accessories Mounting Block Shallow 25mm | White

Item Number: PDL536WH

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width119 mm

Height icon

Height76 mm

Depth icon

Depth25 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

PDL General Accessories

Product or component type

mounting plate

Colour tint

white

Surface finish

glossy

Sustainable offer status

Green Premium product

Physical

Quantity per set

set of 100|set of 10

Type of packing

carton

Installation direction

vertical

Device mounting

surface

Height

76 mm

Width

119 mm

Depth

25 mm

Fixing center

84 mm

Cable entry

4 x 25 mm knock-out|12 x 20 mm knock-out|12 x 16 mm knock-out|12 TPS knock-out cable entry

Ambient air temperature for operation

-10...40 °C

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110719EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

7.8 cm

Package 1 length

12.0 cm

Package 1 weight

0.049 kg

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

8.0 cm

Package 2 width

12.3 cm

Package 2 length

27.0 cm

Package 2 weight

0.56 kg

Unit type of package 3

CAR

Number of units in package 3

100

Package 3 height

26.0 cm

Package 3 width

29.0 cm

Package 3 length

40.5 cm

Package 3 weight

6.01 kg
Show all specifications
