500 Series, Hot Water Switch, 1 Gang, 20A, 250V, 50Hz

Home ProductsElectrical AccessoriesClipsal - 500 SeriesHot Water Switch

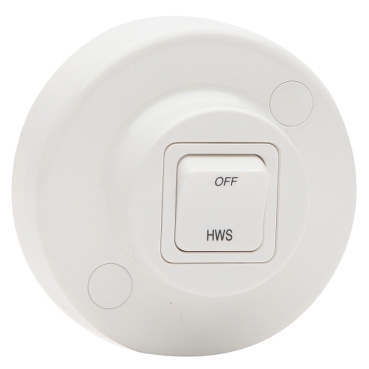

500 Series, Hot Water Switch, 1 Gang, 20A, 250V, 50Hz White

Item Number: PDL572WH

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

500 Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Sustainable offer status

Green Premium product

Physical

Quantity per set

set of 10

Type of packing

carton

Control type

rocker

Installation direction

vertical

Width

66 mm

Height

66 mm

[ue] rated operational voltage

250 V AC 50 Hz

Number of gangs

1 gang

Number of poles

1

Connections - terminals

3 screw terminal

Clamping connection capacity

4 x 1.5 mm²|2 x 2.5 mm²

Marking

hot water switch

Device mounting

surface

Fixing center

50 mm

Ambient air temperature for operation

-10...40 °C

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP110719EN

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Motor m-rating as3133

M60

Diameter

66 mm

Network number of phases

1 phase

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3 cm

Package 1 width

6.5 cm

Package 1 length

6.5 cm

Package 1 weight

0.042 kg
