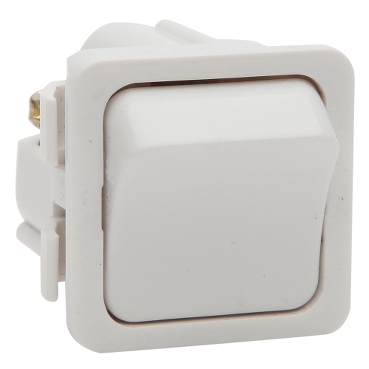

500 Series 1-Way Switch Module With Gold Plated Contacts 250VAC/28VDC

Item Number: PDL581M16CPT

Datasheet

Product Dimensions

Width icon

Width23 mm

Height icon

Height23 mm

Depth icon

Depth24 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

500 Series

Product or component type

switch

Colour tint

white

Surface finish

gloss

Physical

Quantity per set

set of 20

Type of packing

carton

Control type

rocker

Installation direction

horizontal/vertical

Width

23 mm

Height

23 mm

Depth

24 mm

Rated current

16 A/16 AX|5A

[ue] rated operational voltage

250 V AC 50 Hz|28 V DC

Number of poles

1

Connections - terminals

screw terminal

Ambient air temperature for operation

-10...40 °C

Eu rohs directive

Under investigation

Circularity profile

N/A

Material

Material

PC (polycarbonate)

Others

Package 1 bare product quantity

1

Motor m-rating as3133

M50

Network number of phases

1 phase

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.5 cm

Package 1 width

2.5 cm

Package 1 length

3 cm

Package 1 weight

0.011 kg
