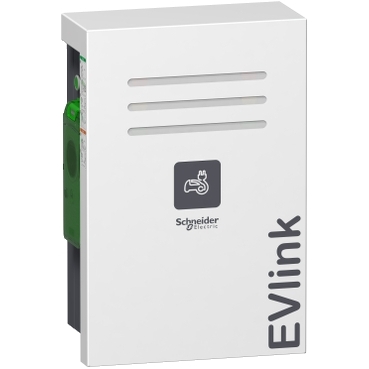

EVlink, Parking Wall Mounted EV Charging Station, 7KW 2xT2

Home ProductsElectric Vehicle ChargingEVlinkParking Wall Mounted EV Charging Station

EVlink, Parking Wall Mounted EV Charging Station, 7KW 2xT2

Item Number: EVW2S7P22

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width413 mm

Height icon

Height620 mm

Depth icon

Depth256 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

EVlink

Product or component type

charging station

Colour

front: white (RAL 9003)|side: grey (RAL 7016)

Sustainable offer status

Green Premium product

Physical

Mounting mode

wall-mounted

Socket number

2

Control type

2 red push-button, function: stop|2 green illuminated push-button, function: start/unlock flap

Local signalling

on charge: 2 LED (green) (flashing) on side|available: 2 LED (green) on front|reserved: 2 LED (orange) on front|not operational: 2 LED (red) on front

Communication port protocol

OCPP 1.6

Function available

charge detail records|load management|user privilege configuration|circuit breaker status|postponed charge|diagnosis capabilities

Standards

IEC 61851-1|IEC 61851-22

Product certifications

ZE Ready|CE|CB|EV Ready

Height

620 mm

Width

413 mm

Depth

256 mm

Net weight

33 kg

Ip degree of protection

IP54 off load conforming to IEC 61851-1|IP54 on load conforming to IEC 61851-1

Ik degree of protection

IK10 charging station conforming to IEC 61851-22|IK10 socket-outlet conforming to IEC 61851-22

Ambient air temperature for operation

-30...50 °C conforming to IEC 61851...22

Ambient air temperature for storage

-40...80 °C

Relative humidity

0...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1608002EN

Circularity profile

ENVEOLI1608002EN

Others

Package 1 bare product quantity

1

Product name

EVlink parking

Device short name

EVW2

Poles description

1P + N for control circuit|1P + N for power circuit

Offer type

standard

[us] rated supply voltage

230 V AC 50/60 Hz power circuit|220...240 V AC 50/60 Hz control circuit

Earthing system

TN|TT|IT

Socket outlet type

2 x T2

Socket-outlet type

right: T2 / silver plated contacts|left: T2 / silver plated contacts

Maximum supply current

32 A for T2

Nominal output power

7 kW for T2

Operating mode

standalone|clustered architecture

Web server

embedded

Ethernet service

configuration via web server

Operating altitude

0...2000 m conforming to IEC 61851-22

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

45.000 cm

Package 1 width

50.000 cm

Package 1 length

68.000 cm

Package 1 weight

25.600 kg

Product contributes to saved and avoided emissions

No

Carbon footprint (kg.eq.co2 per cr, total life cycle)

931.722
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • CAD Files and Packs

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Operating Manuals

  • Quick Start Guide

  • Declaration of Conformity

  • Certificates (MSDS)

  • Firmware

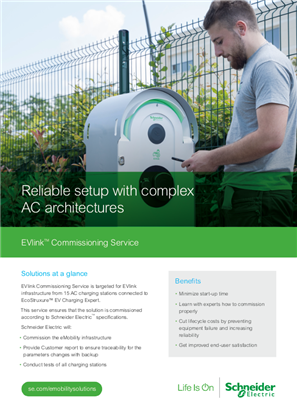

EVlink Commissioning Service - Brochure
ZIP

EVlink Commissioning Service - Brochure

VERSION

1.1

DATE

04 Oct 2023

REVISION

1.1

DOWNLOAD (ZIP) 1 MB
CAD for EVlink Parking wall mounted terminal 2xT2
ZIP

CAD for EVlink Parking wall mounted terminal 2xT2

VERSION

1.0

DATE

20 Jul 2023

REVISION

1.0

DOWNLOAD (ZIP) 336.3 KB

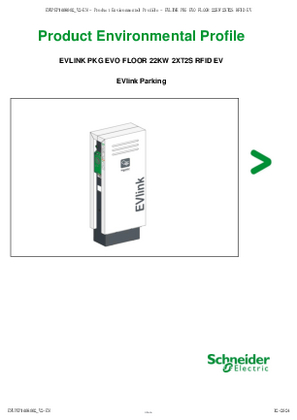

PEP- ELECTRIC VEHICLE CHARGING STATION
ZIP

PEP- ELECTRIC VEHICLE CHARGING STATION

VERSION

1.0

DATE

04 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 446.5 KB

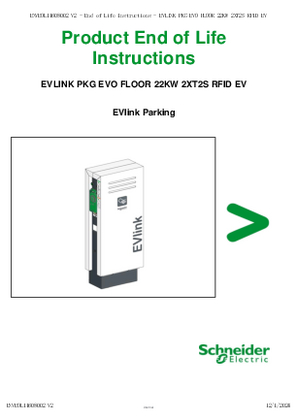

EOLI - ELECTRIC VEHICLE CHARGING STATION
ZIP

EOLI - ELECTRIC VEHICLE CHARGING STATION

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 343.6 KB

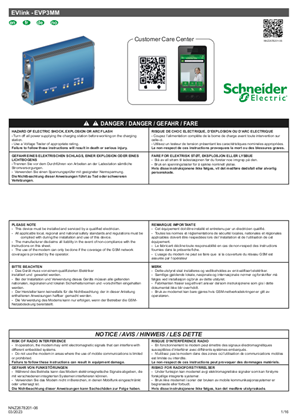

Modem EVP3MM, Instruction Sheet
ZIP

Modem EVP3MM, Instruction Sheet

VERSION

1.3

DATE

02 Mar 2023

REVISION

1.3

DOWNLOAD (ZIP) 9.7 MB

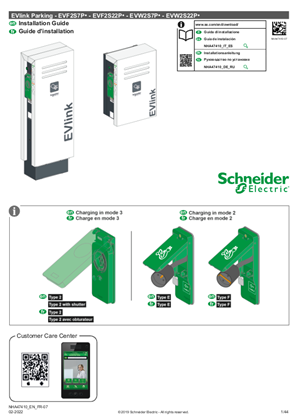

EVlink Parking - EVF2S7P - EVF2S22P - EVW2S7P - EVW2S22P - Installation Guide
ZIP

EVlink Parking - EVF2S7P - EVF2S22P - EVW2S7P - EVW2S22P - Installation Guide

VERSION

1.3

DATE

09 Aug 2022

REVISION

1.3

DOWNLOAD (ZIP) 33.3 MB

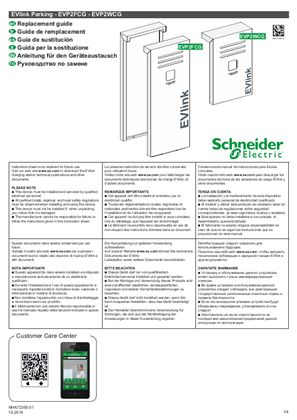

EVlink Parking - Covers - Replacement Guide
ZIP

EVlink Parking - Covers - Replacement Guide

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 13 MB

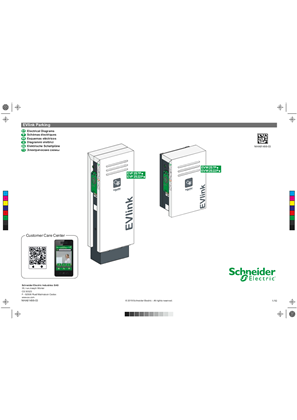

EVlink Parking - EVF2S7P - EVF2S22P - EVW2S7P - EVW2S22P - EVP2PE - Electrical Diagrams
ZIP

EVlink Parking - EVF2S7P - EVF2S22P - EVW2S7P - EVW2S22P - EVP2PE - Electrical Diagrams

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 16.7 MB

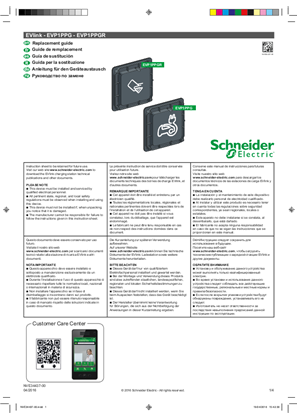

EVlink Parking - EVP1PH - Cable holder - Instruction sheet
ZIP

EVlink Parking - EVP1PH - Cable holder - Instruction sheet

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 6.1 MB

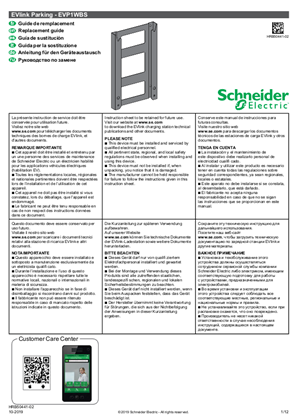

EVlink Parking: Spare part - Wall mounting.
ZIP

EVlink Parking: Spare part - Wall mounting.

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 14.1 MB

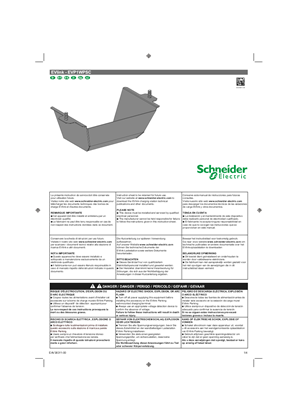

EVlink Parking - Cable cover for wall mounted charging station
ZIP

EVlink Parking - Cable cover for wall mounted charging station

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 11.4 MB
EVlink Parking : Spare part - RFID cover..
ZIP

EVlink Parking : Spare part - RFID cover..

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 3.6 MB
EVlink Parking - EVlink City - EVlink Smart Wallbox - Charging stations - Commissioning Guide
ZIP

EVlink Parking - EVlink City - EVlink Smart Wallbox - Charging stations - Commissioning Guide

VERSION

2.4

DATE

21 Sep 2022

REVISION

2.4

DOWNLOAD (ZIP) 3.7 MB

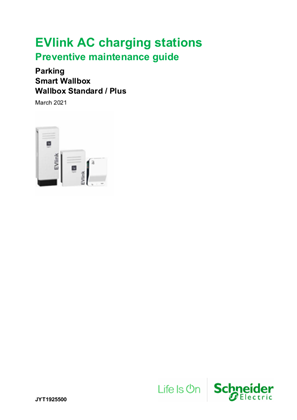

EVlink Preventive maintenance guide
ZIP

EVlink Preventive maintenance guide

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB

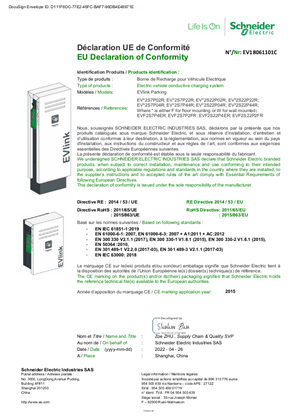

EU Declaration of Conformity for EVlink Parking Charging Stations EVF2 EVW2
ZIP

EU Declaration of Conformity for EVlink Parking Charging Stations EVF2 EVW2

VERSION

1.3

DATE

23 Feb 2024

REVISION

1.3

DOWNLOAD (ZIP) 910.3 KB

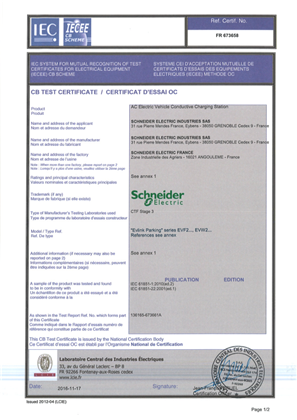

EVlink Parking - EVF2 EVW2 - CB Certificate - IEC 61851
ZIP

EVlink Parking - EVF2 EVW2 - CB Certificate - IEC 61851

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB

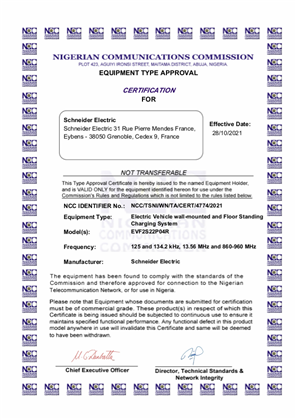

NCC Certification
