EVlink, Parking Wall Mounted EV Charging Station, 7KW, 1xT2, Shutter

Home ProductsElectric Vehicle ChargingEVlinkParking Wall Mounted EV Charging Station

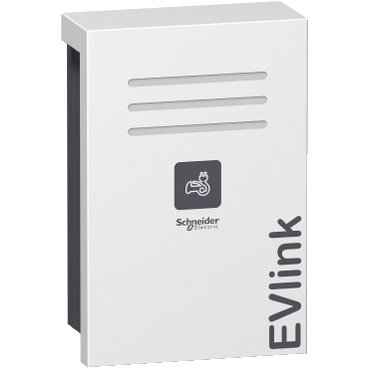

EVlink, Parking Wall Mounted EV Charging Station, 7KW, 1xT2, Shutter

Item Number: EVW2S7P04

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width413 mm

Height icon

Height620 mm

Depth icon

Depth256 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

EVlink

Product or component type

charging station

Colour

front: white (RAL 9003)|side: grey (RAL 7016)

Sustainable offer status

Green Premium product

Physical

Mounting mode

wall-mounted

Socket number

1

Control type

1 red push-button, function: stop|1 green illuminated push-button, function: start/unlock flap

Local signalling

on charge: 1 LED (green) (flashing) on side|available: 1 LED (green) on front|reserved: 1 LED (orange) on front|not operational: 1 LED (red) on front

Communication port protocol

OCPP 1.6

Function available

user privilege configuration|diagnosis capabilities|load management|postponed charge|circuit breaker status|charge detail records

Standards

IEC 61851-22|IEC 61851-1

Product certifications

ZE Ready|CE|CB|EV Ready

Height

620 mm

Width

413 mm

Depth

256 mm

Net weight

33 kg

Ip degree of protection

IP54 off load conforming to IEC 61851-1|IP54 on load conforming to IEC 61851-1

Ik degree of protection

IK10 charging station conforming to IEC 61851-22|IK10 socket-outlet conforming to IEC 61851-22

Ambient air temperature for operation

-30...50 °C conforming to IEC 61851...22

Ambient air temperature for storage

-40...80 °C

Relative humidity

0...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1608002EN

Circularity profile

ENVEOLI1608002EN

Others

Commercial status history

SESA301466 | Tue Jan 16 00:43:00 EST 2024 | From Import Local | From 18 to 19

Package 1 bare product quantity

1

Product name

EVlink parking

Device short name

EVW2

Poles description

1P + N for control circuit|1P + N for power circuit

Offer type

standard

[us] rated supply voltage

230 V AC 50/60 Hz power circuit|220...240 V AC 50/60 Hz control circuit

Earthing system

TN|IT|TT

Socket outlet type

T2S

Socket-outlet type

right: T2 with shutter / silver plated contacts

Maximum supply current

32 A for T2 with shutter

Nominal output power

7 kW for T2 with shutter

Operating mode

standalone|clustered architecture

Web server

embedded

Ethernet service

configuration via web server

Operating altitude

0...2000 m conforming to IEC 61851-22

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

50.0 cm

Package 1 width

45.0 cm

Package 1 length

68.0 cm

Package 1 weight

33.0 kg

Product contributes to saved and avoided emissions

No

Carbon footprint (kg.eq.co2 per cr, total life cycle)

931.722
