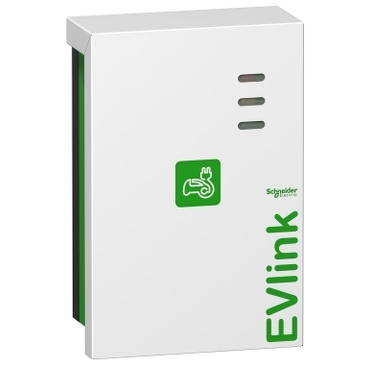

EVlink, Parking Wall Mounted EV Charging Station, 7KW 1XT2

Item Number: EVW1S7P02

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width413 mm

Height icon

Height620 mm

Depth icon

Depth256 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

EVlink

Product or component type

charging station

Physical

Mounting mode

wall-mounted

Socket number

1

Control type

  • 1 green illuminated push-button, function: unlock flap
  • 1 red push-button, function: stop

Local signalling

  • on charge: 1 LED (green) (flashing)
  • available: 1 LED (green)
  • reserved: 1 LED (orange)
  • not operational: 1 LED (red)

Standards

  • IEC 61851-1
  • IEC 61851-22

Product certifications

  • CB
  • CE

Height

620 mm

Width

413 mm

Depth

256 mm

Net weight

33 kg

Ip degree of protection

  • IP54 off load conforming to IEC 61851-1
  • IP54 on load conforming to IEC 61851-1

Ik degree of protection

  • IK10 charging station conforming to IEC 61851-22
  • IK08 socket-outlet conforming to IEC 61851-22

Ambient air temperature for operation

-30...50 °C conforming to IEC 61851...22

Ambient air temperature for storage

-40...80 °C

Relative humidity

0...95 %

Others

Package 1 bare product quantity

1

Product name

EVlink parking

Device short name

EVW1

Poles description

  • 1P + N for control circuit
  • 1P + N for power circuit

Offer type

standard

[us] rated supply voltage

  • 230 V AC 50/60 Hz control circuit
  • 230 V AC 50/60 Hz power circuit

Earthing system

  • TN
  • TT

Socket outlet type

T2

Socket-outlet type

right: T2

Maximum supply current

32 A

Nominal output power

7 kW

Operating altitude

0...2000 m conforming to IEC 61851-22

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

50 cm

Package 1 width

45 cm

Package 1 length

68 cm

Package 1 weight

23.5 kg
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Operating Manuals

  • Certificates (MSDS)

  • Declaration of Conformity

EVLink Parking_Electric Vehicle charging station - PEP
ZIP

EVLink Parking_Electric Vehicle charging station - PEP

VERSION

3.0

DATE

27 Oct 2022

REVISION

3.0

DOWNLOAD (ZIP) 268.3 KB
EVLink Parking charging station - EoLi
ZIP

EVLink Parking charging station - EoLi

VERSION

3.0

DATE

27 Oct 2022

REVISION

3.0

DOWNLOAD (ZIP) 206.4 KB
EVlink Parking - NCA07200 - NCA07300 - Spare flap for EVlink socket outlet.
ZIP

EVlink Parking - NCA07200 - NCA07300 - Spare flap for EVlink socket outlet.

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 746.4 KB
NCA03... - Spare socket outlet for EVlink charging stations.
ZIP

NCA03... - Spare socket outlet for EVlink charging stations.

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 137.2 KB
EVlink Parking - Charging Station - EVW1S - EVF1S - Instruction Sheet.
ZIP

EVlink Parking - Charging Station - EVW1S - EVF1S - Instruction Sheet.

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 16 MB
EVlink Parking - EVP1PH - Cable holder - Instruction sheet
ZIP

EVlink Parking - EVP1PH - Cable holder - Instruction sheet

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 6.1 MB
EVlink Parking: Spare part - Wall mounting.
ZIP

EVlink Parking: Spare part - Wall mounting.

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 14.1 MB
EVlink Parking - Cable cover for wall mounted charging station
ZIP

EVlink Parking - Cable cover for wall mounted charging station

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 11.4 MB
EVlink Parking : Spare part - Cap.
ZIP

EVlink Parking : Spare part - Cap.

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 9.6 MB
EVlink Parking - EVlink City - EVlink Smart Wallbox - Charging stations - Commissioning Guide
ZIP

EVlink Parking - EVlink City - EVlink Smart Wallbox - Charging stations - Commissioning Guide

VERSION

2.4

DATE

21 Sep 2022

REVISION

2.4

DOWNLOAD (ZIP) 3.7 MB
EVlink Parking - EVF1 - EVW1 - Parking Charging Stations - User Guide
ZIP

EVlink Parking - EVF1 - EVW1 - Parking Charging Stations - User Guide

VERSION

1.0

DATE

09 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 2.9 MB

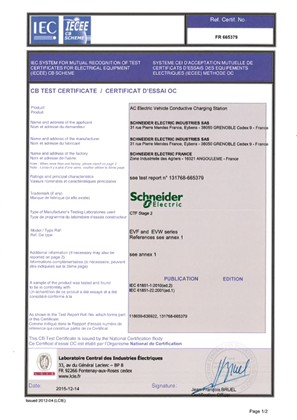

EVlink EVF and EVW series - CB Certificate - LCIE
ZIP

EVlink EVF and EVW series - CB Certificate - LCIE

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 230.1 KB
Certificate EVF & EVW according to IEC 61851-1:2010 and IEC 61851-22:2001
ZIP

Certificate EVF & EVW according to IEC 61851-1:2010 and IEC 61851-22:2001

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 227.3 KB
EVlink EVF1S&EVW1S - EC Declaration of Conformity
ZIP

EVlink EVF1S&EVW1S - EC Declaration of Conformity

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 73.4 KB
