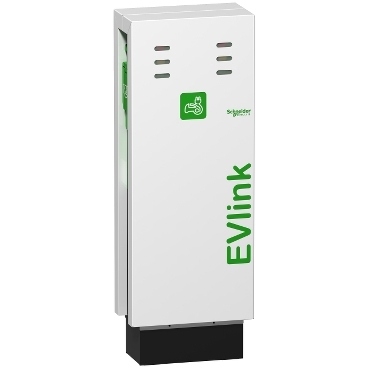

EVlink, Parking Floor Standing EV Charging Station, 7KW 2XT2

Home ProductsElectric Vehicle ChargingEVlinkParking Floor Standing EV Charging Station

EVlink, Parking Floor Standing EV Charging Station, 7KW 2XT2

Item Number: EVF1S7P22

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width413 mm

Height icon

Height1146 mm

Depth icon

Depth220 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

EVlink

Product or component type

charging station

Physical

Mounting mode

floor-standing

Socket number

2

Control type

2 green illuminated push-button, function: unlock flap|2 red push-button, function: stop

Local signalling

on charge: 1 LED (green) (flashing)|available: 1 LED (green)|reserved: 1 LED (orange)|not operational: 1 LED (red)

Standards

IEC 61851-22|IEC 61851-1

Product certifications

CB|CE

Height

1146 mm

Width

413 mm

Depth

220 mm

Net weight

50 kg

Ip degree of protection

IP54 off load conforming to IEC 61851-1|IP54 on load conforming to IEC 61851-1

Ik degree of protection

IK10 charging station conforming to IEC 61851-22|IK08 socket-outlet conforming to IEC 61851-22

Ambient air temperature for operation

-30...50 °C conforming to IEC 61851...22

Ambient air temperature for storage

-40...80 °C

Relative humidity

0...95 %

Others

Package 1 bare product quantity

1

Product name

EVlink parking

Device short name

EVF1

Poles description

1P + N for control circuit|1P + N for power circuit

Offer type

standard

[us] rated supply voltage

230 V AC 50/60 Hz control circuit|230 V AC 50/60 Hz power circuit

Earthing system

TN|TT

Socket outlet type

2 x T2

Socket-outlet type

right: T2|left: T2

Maximum supply current

32 A

Nominal output power

7 kW

Operating altitude

0...2000 m conforming to IEC 61851-22

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

38 cm

Package 1 width

45 cm

Package 1 length

128 cm

Package 1 weight

43.5 kg
Show all specifications
