EVlink Pro AC/AC Metal ChargingStation 22kW, 32A, 3P+N, T2S Socket Outlet, RDC-DD 6mA, MNx aux.

Item Number: EVB3S22N4

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width317 mm

Height529 mm

Depth153 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606482213135	-

Specifications

Design

Range

EVlink

Product or component type

charging station

Colour

front face: white (RAL 9003)|housing: dark grey (RAL 7016)|back part: black (RAL 9005)

Sustainable offer status

Green Premium product

Physical

Communication network type

Ethernet|bluetooth|3G/4Gmodem optional|Modbus TCP

Connector type

2 RJ45 for Ethernet LAN connection

Communication port protocol

OCPP 1.6

Function available

diagnosis capabilities|charge detail records|load management

Range compatibility

EVlink EcoStruxure EV Charging Expert|EVlink EVlink Pro AC Metal|EcoStruxure EcoStruxure EV Advisor

Type of installation

indoor|outdoor

Provided equipment

1 residual direct current detection device (RDC-DD) integrated| 1 MNx auxiliary contact integrated

Mounting mode

wall-mounted|wall-mounted (kit enclosure)|floor-standing (pedestal)|floor-standing (kit enclosure)

Mounting support

pedestal, to be ordered separately|kit enclosure, to be ordered separately

Cable entry

bottom entry|top entry|rear entry

Socket number

Control type

can be controlled by remote

Local signalling

1 green LED light strip, function: available|1 blue LED light strip, function: charging|1 red LED light strip, function: fault indication

Standards

EN/IEC 61851-1:ed. 3|EN/IEC 62196-1:ed. 2|EN/IEC 62196-2:ed. 1|EN 61000-6-2:2019|EN 61000-6-3:2007|EN 61000-6-3:2011/A1|IEC 60884-1|NF C 61314|ISO 15118

Product certifications

EV Ready|CE

Height

529 mm

Width

317 mm

Depth

153 mm

Net weight

7.2 kg

Ip degree of protection

IP55

Ik degree of protection

IK10

Ambient air temperature for operation

-30...50 °C

Ambient air temperature for storage

-40...80 °C

Relative humidity

5...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP2202024

Circularity profile

ENVEOLI2202024

Others

Package 1 bare product quantity

Package 2 bare product quantity

Product name

EVlink Pro AC

Device short name

EVB3

Communication service

JSON smart charging for OCPP 1.6

Operating mode

clustered architecture|standalone

Accuracy class

class 1

Protection device type

residual direct current detection device (RDC-DD) - 6 mA

Poles description

3P + N for power circuit

[us] rated supply voltage

380...415 V AC 50/60 Hz

Nominal output power

22 kW 32 A 380...415 V

Output type

front side T2 with shutter socket-outlet / silver plated contacts

Access control system

badge RFID conforming to ISO/IEC 14443 A and B|badge RFID conforming to ISO/IEC 15693|badge NFC|free access

Technology type

MIFARE Classic|MIFARE Ultralight|MIFARE Plus

Rfid frequency

13.56 MHz

Nfc tag type

type 1|type 2|type 4|type 5

Earthing system

TT|TN-S|TN-C-S|IT (single phase network only allowed, 400V 3 phases network forbidden)

Condition of use

3x230VAC (ph-ph) distribution forbidden

Number of inputs

Input type

binary for power limitation closing contact|binary for delayed charging closing contact|binary for vehicle detection closing contact

Operating altitude

2000 m without derating

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

28.500 cm

Package 1 width

35.500 cm

Package 1 length

57.500 cm

Package 1 weight

8.700 kg

Unit type of package 2

P06

Number of units in package 2

Package 2 height

73.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

Package 2 weight

43.000 kg

Show all specifications

Documents & downloads

hide show

Colour ()

EVlink Pro AC/AC Metal ChargingStation 22kW, 32A, 3P+N, T2S Socket Outlet, RDC-DD 6mA, MNx aux.

Item Number: EVB3S22N4

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

Product Brochures

How to video

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

End of Life Manual

Environmental Disclosure

Operating Manuals

System User Guide

Technical illustration

Technical Drawing

Application Notes

Certificates (MSDS)

Declaration of Conformity

Firmware

EVlink Pro AC

EVlink Commissioning Service - Brochure

EVlink Parking Substitution Guide

EVlink Smart Wallbox Substitution Guide

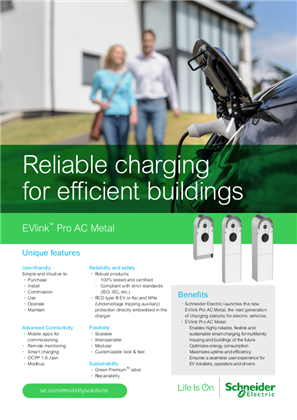

EVlink Pro AC Metal, the next generation of charging stations for electric vehicles

EVlink Pro AC Metal - Brochure

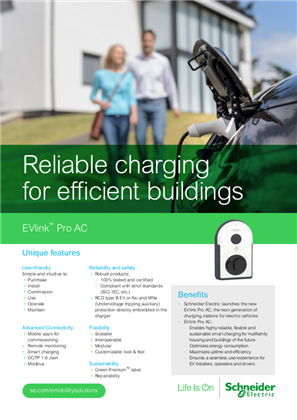

EVlink Pro AC - Brochure

How to video 1 - EcoStruxure EV Charging Expert_Key principles

How to install a two charge points EVlink Pro AC Metal

How to Install 4G embedded modem for Pro AC

How to install EVlink Pro AC charging station

How to update EVlink Pro AC firmware with eSetup

How to diagnose an EVlink Pro AC issue with eSetup

eSetup_How to commission an external power meter used with EVink Pro AC

How to configure EVlink Pro AC Ethernet communication parameters with eSetup

How to Set-up Authentication modes and manage User badges with eSetup

How to Commission EVlink Pro AC with eSetup - Introduction

How To Install and commission EVlink Pro Pay

CAD - EVlink Pro AC Chargers T2S

eMobility Solutions - Catalog 2024

EVlink Pro AC - Spare Part Replacement Guide

EVlink Pro AC - Installation Guide

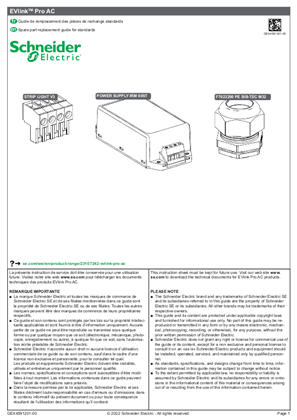

EVlink Pro AC - Spare part replacement guide for standards

EVlink AC charger 3.7kw 16A 1PH T2S SOCKET 6mA RCD Type A MNX

EVlink AC charger 3.7kw 16A 1PH T2S SOCKET 6mA RCD Type A MNX

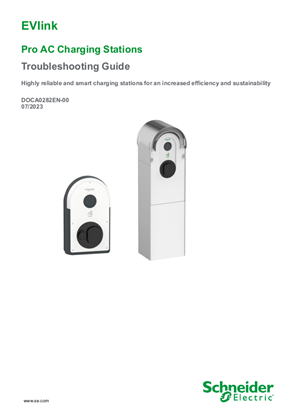

Troubleshooting Guide, EVlink Pro AC Charging Stations

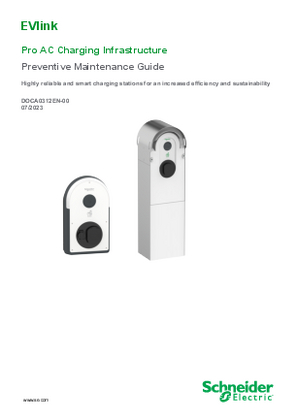

EVlink Pro AC Charging Infrastructure, Preventive Maintenance Guide

eMobility Infrastructure Design Guide for Building Applications

EVlink Pro AC - 2D Dimensions

Buildings Application - Architecture illustration of an EV infrastructure for Office Buildings

Buildings Application - Architecture illustration for a Depot with AC and Fast DC chargers

Buildings Application - Architecture illustration for EV charging infrastructure in residential buildings application

Buildings Application - Architecture illustration of an EV solution for Car Parks

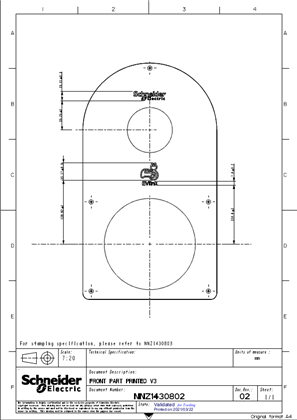

EVlink Pro AC Front Plate Drawing Without Logo - Plan for Customization

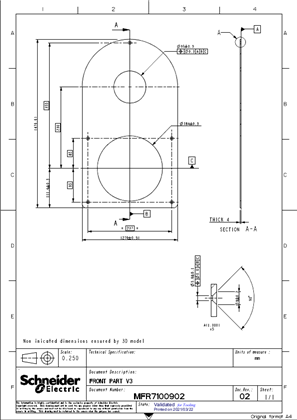

EVlink Pro AC Front Plate Drawing with Logo - Plan for Customization

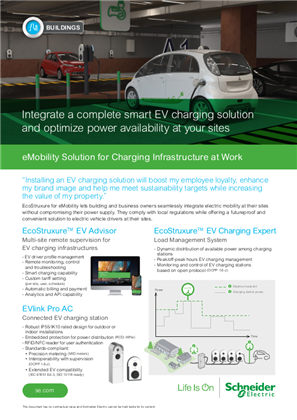

eMobility solution for Light Commercial Electrical Vehicle Depots - Application Note

eMobility solution for New Residential Buildings

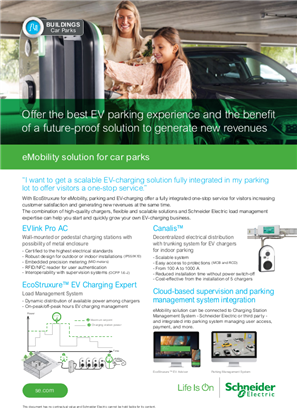

eMobility Solution for Car Parks - Application Note

eMobility Solution for Charging infrastructure at work - Multisite - Application Note

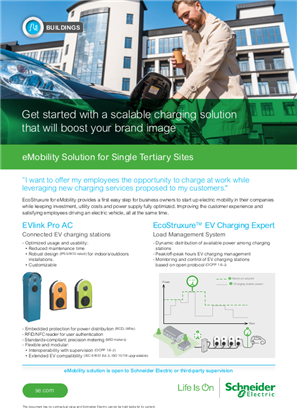

eMobility Solution for Single Tertiary Sites - Application Note

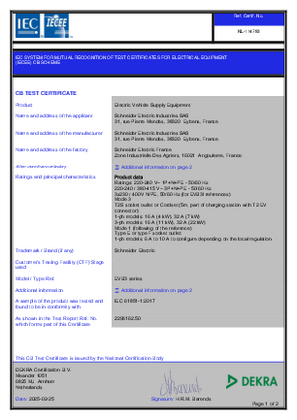

EVlink Pro AC, EVB3 series, IEC CB Test Certificate

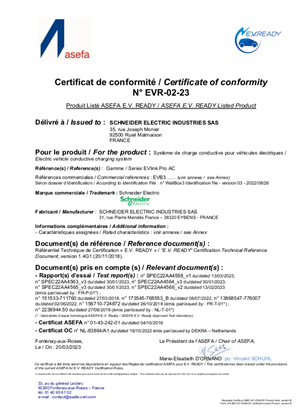

EVlink Pro AC, E.V. READY Listed Product, Certificate of conformity

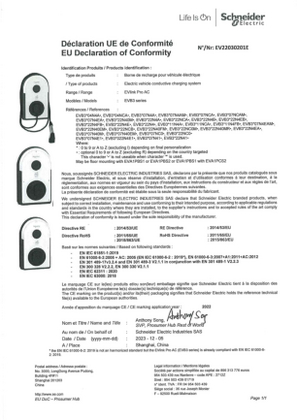

EVlink Pro AC, EBV3 series, EU Declaration of Conformity

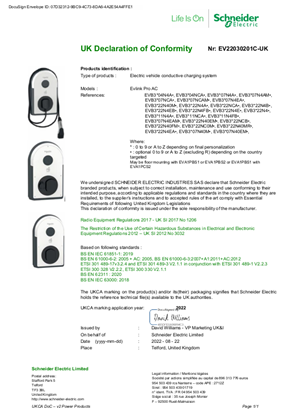

EVlink Pro AC, EBV3 series, UK Declaration of Conformity
