EVlink Pro AC 22kw 32A 3PH T2S SOCKET MID 6mA and MNX supplied

Home ProductsElectric Vehicle ChargingEVlink Pro ACChargingStation

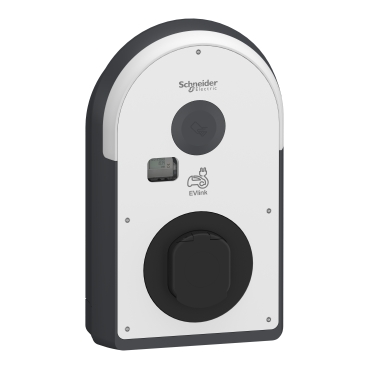

EVlink Pro AC/AC Metal ChargingStation 22kW, 32A, 3P+N, T2S Socket Outlet, RDC-DD 6mA, MID Meter

Item Number: EVB3S22N40M

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width317 mm

Height529 mm

Depth153 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606482213166	-

Specifications

Design

Range

EVlink

Product or component type

charging station

Colour

front face: white (RAL 9003)|housing: dark grey (RAL 7016)|back part: black (RAL 9005)

Sustainable offer status

Green Premium product

Physical

Communication network type

Ethernet|bluetooth|3G/4Gmodem optional|Modbus TCP

Connector type

2 RJ45 for Ethernet LAN connection

Communication port protocol

OCPP 1.6

Function available

diagnosis capabilities|charge detail records|load management

Range compatibility

EVlink EcoStruxure EV Charging Expert|EVlink EVlink Pro AC Metal|EcoStruxure EcoStruxure EV Advisor

Type of installation

indoor|outdoor

Provided equipment

1 residual direct current detection device (RDC-DD) integrated| 1 energy meter integrated| 1 MID meter integrated

Mounting mode

wall-mounted|wall-mounted (kit enclosure)|floor-standing (pedestal)|floor-standing (kit enclosure)

Mounting support

pedestal, to be ordered separately|kit enclosure, to be ordered separately

Cable entry

bottom entry|top entry|rear entry

Socket number

Control type

can be controlled by remote

Local signalling

1 green LED light strip, function: available|1 blue LED light strip, function: charging|1 red LED light strip, function: fault indication

Standards

EN/IEC 61851-1:ed. 3|EN/IEC 62196-1:ed. 2|EN/IEC 62196-2:ed. 1|EN 61000-6-2:2019|EN 61000-6-3:2007|EN 61000-6-3:2011/A1|IEC 60884-1|NF C 61314|ISO 15118

Product certifications

EV Ready|CE

Height

529 mm

Width

317 mm

Depth

153 mm

Net weight

7.2 kg

Ip degree of protection

IP55

Ik degree of protection

IK10

Ambient air temperature for operation

-30...50 °C

Ambient air temperature for storage

-40...80 °C

Relative humidity

5...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP2202024

Circularity profile

ENVEOLI2202024

Others

Package 1 bare product quantity

Package 2 bare product quantity

Product name

EVlink Pro AC

Device short name

EVB3

Directives

2014/32/EU - measuring instruments directive (MID)

Communication service

JSON smart charging for OCPP 1.6

Operating mode

clustered architecture|standalone

Accuracy class

class 1

Protection device type

residual direct current detection device (RDC-DD) - 6 mA

Poles description

3P + N for power circuit

[us] rated supply voltage

380...415 V AC 50/60 Hz

Nominal output power

22 kW 32 A 380...415 V

Output type

front side T2 with shutter socket-outlet / silver plated contacts

Access control system

badge RFID conforming to ISO/IEC 14443 A and B|badge RFID conforming to ISO/IEC 15693|badge NFC|free access

Technology type

MIFARE Classic|MIFARE Ultralight|MIFARE Plus

Rfid frequency

13.56 MHz

Nfc tag type

type 1|type 2|type 4|type 5

Earthing system

TT|TN-S|TN-C-S|IT (single phase network only allowed, 400V 3 phases network forbidden)

Condition of use

3x230VAC (ph-ph) distribution forbidden

Number of inputs

Input type

binary for power limitation closing contact|binary for delayed charging closing contact|binary for vehicle detection closing contact

Operating altitude

2000 m without derating

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

28.000 cm

Package 1 width

35.700 cm

Package 1 length

57.500 cm

Package 1 weight

8.489 kg

Unit type of package 2

P12

Number of units in package 2

Package 2 height

71.000 cm

Package 2 width

80.000 cm

Package 2 length

120.000 cm

Package 2 weight

41.000 kg

Show all specifications
