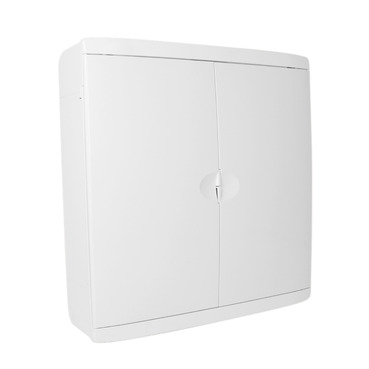

Superboard Series Distribution Board 30-Way 100A 415V Surface Mount ABS, Light Grey
Item Number: PDLDBS30
Product PDLDBS30 is replaced by R9HSB215S
View here.
Specifications
Design
Range of product
Superboard Series
Product or component type
distribution board
Colour tint
light grey
Surface finish
gloss
Physical
Installation direction
vertical
Width
376 mm
Height
392 mm
Depth
115 mm
Rated current
100 A
[ue] rated operational voltage
415 V
Mounting mode
surface mounted
Quantity per set
set of 1
Type of packing
carton
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs exemption information
Yes
Material
Material
ABS (acrylonitrile butadiene-styrene)
Others
Commercial status history
SESA301466 | Tue May 21 01:12:00 EDT 2024 | From Import Local | From 18 to 19
Package 1 bare product quantity
1
[ui] rated insulation voltage
1000 V
Cable cross section
25 mm²
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
12.2 cm
Package 1 width
38.5 cm
Package 1 length
41.0 cm
Package 1 weight
3.97 kg
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Quick Start Guide
-

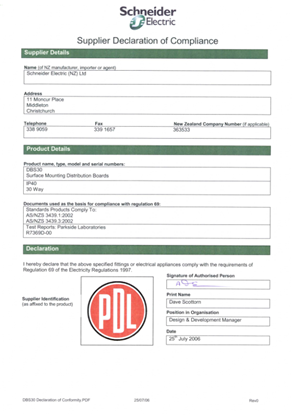

Declaration of Conformity
