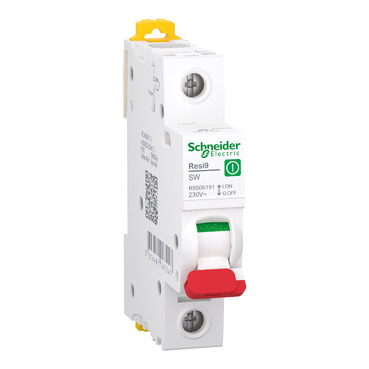

Resi9 Switch disconnector 1P, 100A

Item Number: R9S06191

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width18 mm

Height icon

Height85 mm

Depth icon

Depth75 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Resi9

Product or component type

switch disconnector

Device application

switch

Sustainable offer status

Green Premium product

Physical

Standards

IEC 60947-3

[ie] rated operational current

100 A at 230 V AC 50/60 Hz

[ue] rated operational voltage

230 V AC 50/60 Hz

Control type

toggle

Local signalling

ON/OFF indication

Mounting mode

clip-on

Mounting support

DIN rail

Height

85 mm

Width

18 mm

Depth

75 mm

Net weight

81 g

Mechanical durability

20000 cycles

Electrical durability

AC-22A: 10000 cycles 230 V AC 50/60 Hz

Connections - terminals

tunnel type terminals (top or bottom) - 6...50 mm² - rigid|tunnel type terminals (top or bottom) - 6...35 mm² - flexible

Wire stripping length

14 mm for top or bottom connection

Ip degree of protection

IP20

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP2210013EN

Circularity profile

N/A

Others

Commercial status history

SESA65410 | Mon Sep 25 00:14:00 EDT 2023 | From Import Local | From 02 to 08

Package 1 bare product quantity

1

Package 2 bare product quantity

12

Package 3 bare product quantity

96

Package 4 bare product quantity

1152

Poles description

1P

Utilisation category

AC-22A

Suitability for isolation

yes

Quality labels

RCM

Network frequency

50/60 Hz

[icm] rated short-circuit making capacity

5 kA 230 V AC at 50/60 Hz

[icw] rated short-time withstand current

1500 A during 1 s conforming to IEC 60947-3 at 230 V

[ith] conventional free air thermal current

100 A

Maximum power

AC-22A: 4.7 kW at 230 V AC 50/60 Hz

[ui] rated insulation voltage

500 V AC 50/60 Hz

[uimp] rated impulse withstand voltage

6 kV

Contact position indicator

yes

Comb busbar and distribution block compatibility

top or bottom: YES

Connection pitch

18 mm

9 mm pitches

2

Tightening torque

3.5...3.5 N.m top or bottom

Compatibility code

Resi9_Switch

Pollution degree

3

Overvoltage category

IV

Tropicalisation

severity B conforming to IEC 60068-2-30

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.85 cm

Package 1 width

1.8 cm

Package 1 length

9.4 cm

Package 1 weight

84 g

Unit type of package 2

BB1

Number of units in package 2

12

Package 2 height

8.6 cm

Package 2 width

9.6 cm

Package 2 length

22 cm

Package 2 weight

1.1 kg

Unit type of package 3

S03

Number of units in package 3

96

Package 3 height

30 cm

Package 3 width

30 cm

Package 3 length

40 cm

Package 3 weight

11.1 kg
