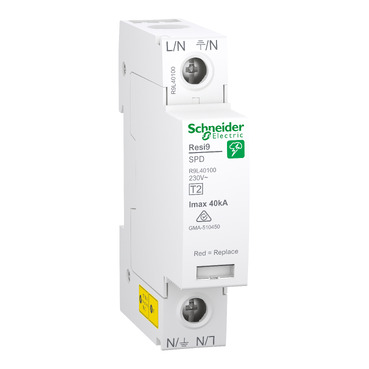

Resi9 Surge arrester

Item Number: R9L40100

1 PCE 0

Where To Buy

Datasheet

For R9L40100

Download

Product Dimensions

Width18 mm

Height85 mm

Depth64 mm

See full specifications

Barcode

Qty	EAN	Colour
1	3606482167339	-
		-
		-

Barcode

Qty	UoM	EAN	Colour
1		3606482167339	-

Specifications

Design

Range

Resi9

Product or component type

surge arrester

Device application

distribution

Physical

[ue] rated operational voltage

230 V +/- 6 % AC 50/60 Hz

Local signalling

white/red flag

Mounting mode

clip-on

Mounting support

DIN rail

Height

85 mm

Width

18 mm

Depth

64 mm

Net weight

119 g

Connections - terminals

tunnel type terminal (top or bottom) 2.5-25 mm² rigid
tunnel type terminal (top or bottom) 4-16 mm² flexible

Wire stripping length

14 mm

Standards

IEC 61643-11:2011
EN 61643-11:2012

Ip degree of protection

IP20

Ik degree of protection

IK03 conforming to IEC 62262

Relative humidity

5...95 % at 55 °C

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2210012EN

Circularity profile

N/A

Others

Commercial status history

SESA65410
Mon Sep 25 00:14:00 EDT 2023
From Import Local
From 02 to 08

Package 1 bare product quantity

Package 2 bare product quantity

Package 3 bare product quantity

1008

Packaging made with recycled cardboard

Packaging without single use plastic

Poles description

Remote signalling

with

Signal contacts composition

1 NO + 1 NC

Surge arrester type

electrical distribution network

Earthing system

TN-C
TN-S
TT

Surge arrester class type

type 2

Surge arrester technology

MOV

Nominal discharge current

15 kA conforming to IEC 61643-11

Maximum discharge current

40 kA conforming to IEC 61643-11

[uc] maximum continuous operating voltage

350 V AC

Maximum [up] voltage protection level

<1.6 kV type 2

[ures] residual voltage

1545 V

[ut] temporary overvoltage

336 V L/PE 5 s withstand

Signalling circuit voltage

AC: 250 V 50/60 Hz

Signalling output current

0.25 A

Comb busbar and distribution block compatibility

tooth

9 mm pitches

Cable cross section

2.5...25 mm² rigid
4...16 mm² flexible

Maximum residual current

0.6 mA 240 V

Tightening torque

3.5...3.5 N.m

Targeted country

New Zealand

Quality labels

RCM

Pollution degree

Operating altitude

0...2000 m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

8.4 cm

Package 1 width

2 cm

Package 1 length

9.8 cm

Package 1 weight

120 g

Unit type of package 2

CAR

Number of units in package 2

Package 2 height

20 cm

Package 2 width

29.9 cm

Package 2 length

39.8 cm

Package 2 weight

10.1 kg

Unit type of package 3

P06

Number of units in package 3

1008

Package 3 height

75 cm

Package 3 width

60 cm

Package 3 length

80 cm

Package 3 weight

127.2 kg

Take-back

Product contributes to saved and avoided emissions

Recycled metal content at cr level

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)
